Multifunction Switch C202b
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

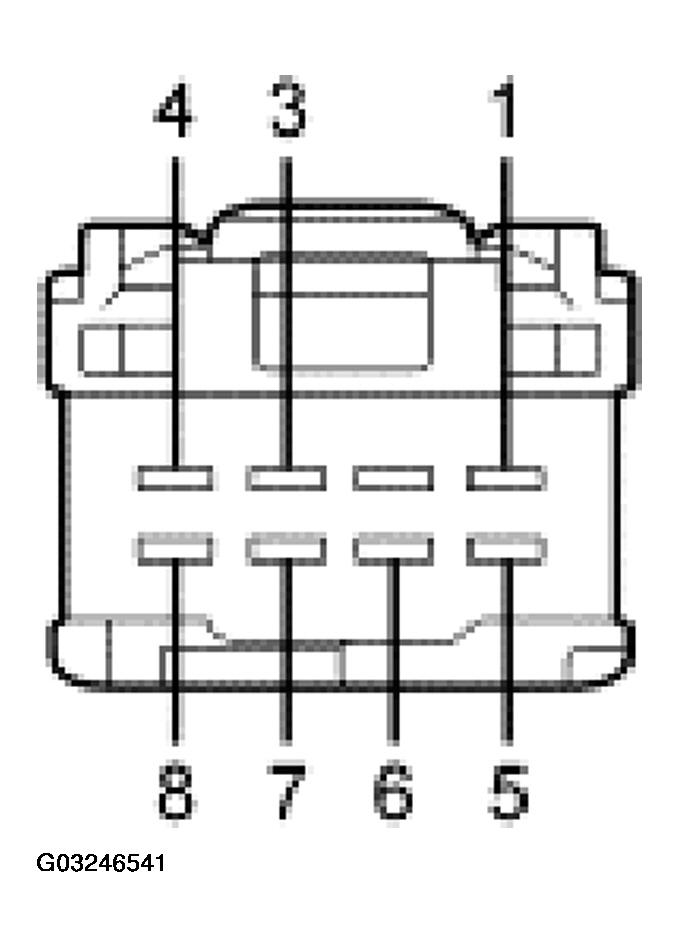

MULTIFUNCTION SWITCH C202B
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 61 (YE/RD) windshield wiper motor control | 5 ohms or less between the multifunction switch and the windshield wiper motor connectors (both disconnected), 10,000 ohms or greater between circuit 61 (YE/RD) and ground. |
| 3 | 488 (DG) rear wiper motor control | 5 ohms or less between the multifunction switch and the rear wiper motor connectors (both disconnected), 10,000 ohms or greater between circuit 488 (DG) and ground. |
| 4 | 485 (PK/BK) rear wiper motor control | 5 ohms or less between the multifunction switch and the rear wiper motor connectors (both disconnected), 10,000 ohms or greater between circuit 485 (PK/BK) and ground. |
| 5 | 28 (BK/PK) windshield wiper motor control | 5 ohms or less between the multifunction switch and the windshield wiper motor connectors (both disconnected), 10,000 ohms or greater between circuit 28 (BK/PK) and ground. |
| 6 | 63 (RD) windshield wiper motor control | 5 ohms or less between the multifunction switch and the windshield wiper motor connectors (both disconnected), 10,000 ohms or greater between circuit 63 (RD) and ground. |
| 7 | 950 (WH/BK) windshield washer motor control | 5 ohms or less between the multifunction switch and the windshield wiper motor connectors (both disconnected), 10,000 ohms or greater between circuit 950 (WH/BK) and ground. |
| 8 | 58 (WH) high speed wiper command input | 5 ohms or less between the multifunction switch and the windshield wiper motor connectors (both disconnected), 10,000 ohms or greater between circuit 58 (WH) and ground. |
