Smart Junction Box (SJB) C2280c

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

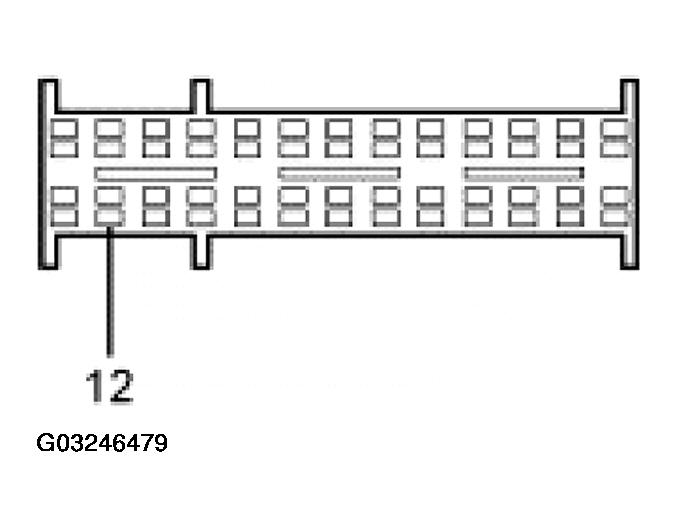

SMART JUNCTION BOX (SJB) C2280C

G03246479
Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
12 1389 (WH) rear window defrost relay control circuit 5 ohms or less between connectors, 10,000 ohms or greater between circuit 1389 (WH) and ground.

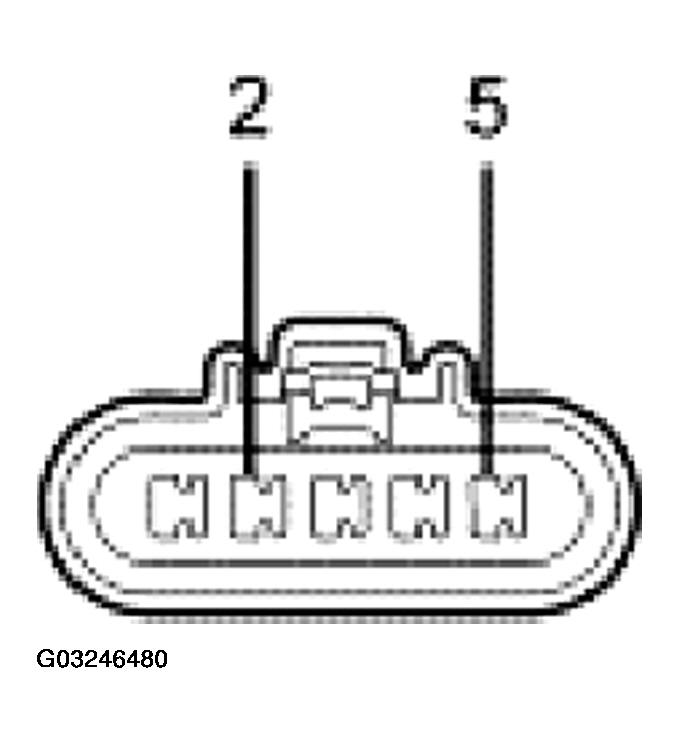

SMART JUNCTION BOX (SJB) C2280C

G03246480
Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
2 170 (RD/LB) power to LH window control switch (RH window motor) 10 volts or greater with the accessory delay relay 1 active, 5 ohms or less between connectors (both disconnected).
5 400 (LB/PK) power to LH window control switch (driver window motor) 10 volts or greater with the accessory delay relay 2 active, 5 ohms or less between connectors (both disconnected).
