Smart Junction Box (SJB) C2280b

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

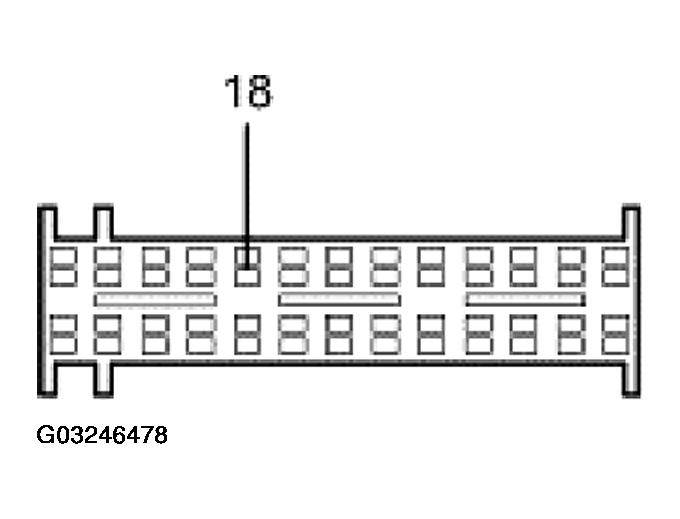

SMART JUNCTION BOX (SJB) C2280B

G03246478
Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
18 1426 (PK) rear window defrost switch input 5 ohms or less between connectors, 10,000 ohms or greater between circuit 1426 (PK) and ground.
