Smart Junction Box (SJB) C2280a

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

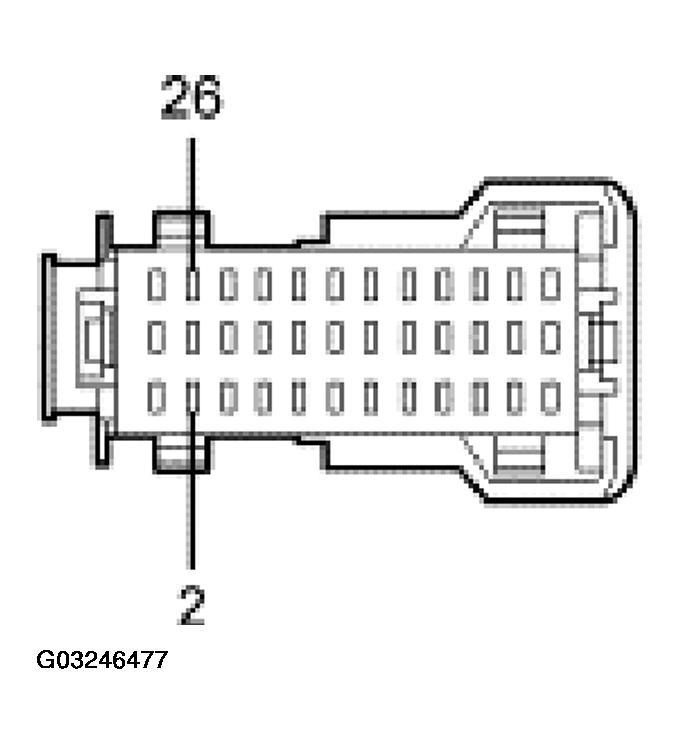

SMART JUNCTION BOX (SJB) C2280A

G03246477
Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
2 194 (PK) power to quarter window switch 10 volts or greater with the accessory delay relay 1 active.
5 ohms or less between connectors (both disconnected).
26 170 (RD/LB) power to RH window control switch 10 volts or greater with the accessory delay relay 1 active.
5 ohms or less between connectors (both disconnected).
