Rear Window Defrost Relay C1099

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
REAR WINDOW DEFROST RELAY C1099

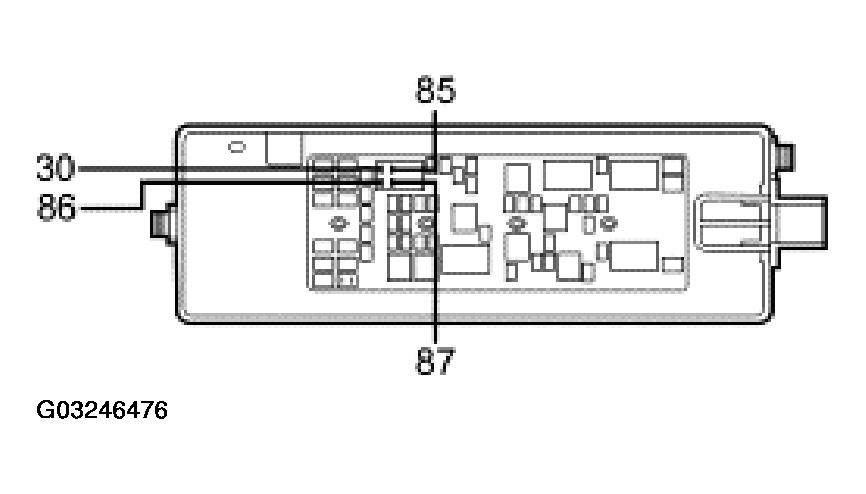

G03246476
Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
30 rear window defrost relay power input 10 volts or greater at all times, 5 ohms or less between the BEC fuse 13 (40A) output cavity and rear window defrost relay with BEC fuse 13 (40A) removed.
85 298 (VT/OG) rear window defrost relay solenoid power 10 volts or greater at all times, 5 ohms or less between rear window defrost relay and SJB fuse 14 (30A) output cavity with SJB fuse 14 (30A) removed.
86 1389 (WH) rear window defrost relay solenoid switch ground 5 ohms or less between rear window defrost relay and SJB (with connectors disconnected).
87 186 (BN/LB) rear window defrost relay power feed to rear window defrost grid 10 volts or greater with engine running and rear window defrost switch ON. 5 ohms or less between the rear window defrost relay and the rear window defrost grid (rear window defrost relay removed).
