Rear Window Defrost Grid C402b

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

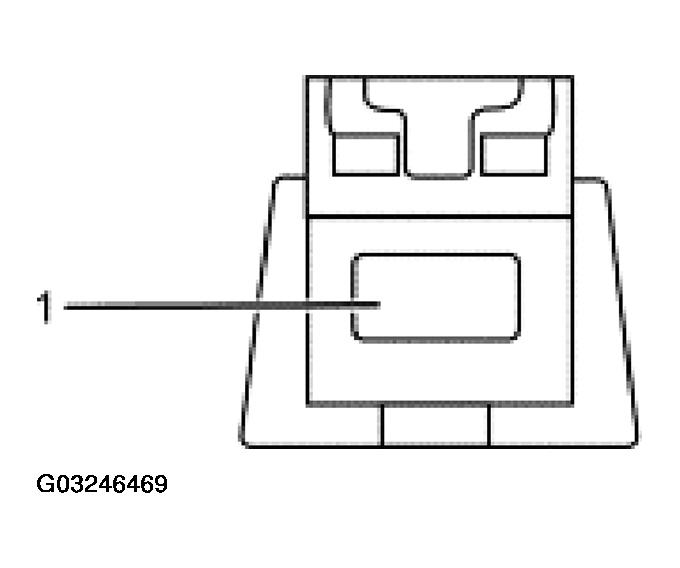

REAR WINDOW DEFROST GRID C402B

G03246469
Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
1 186 (BN/LB) power to the rear window defrost grid 10 volts or greater with engine running and rear window defrost ON, 5 ohms or less between the rear window defrost and relay (relay removed).
