RH Window Control Switch C624

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

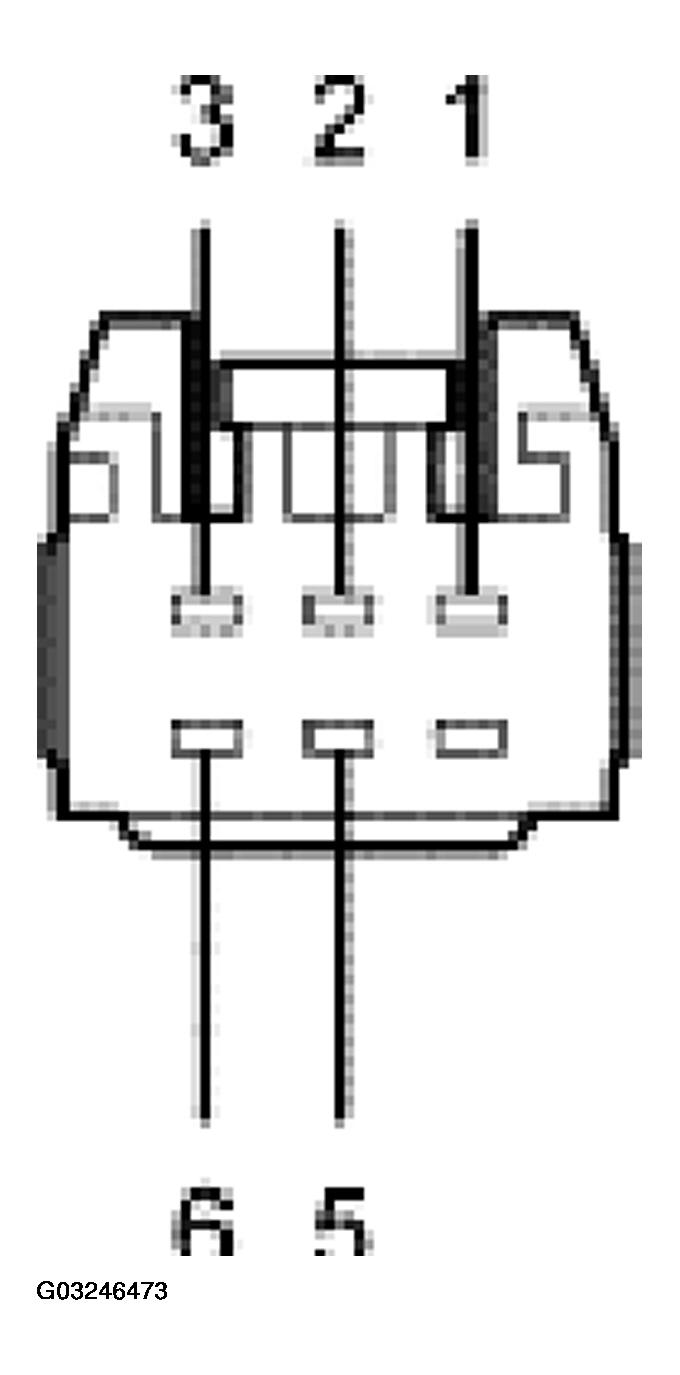

RH WINDOW CONTROL SWITCH C624

G03246473
Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
1 314 (TN/LB) DOWN power feed from the LH window control switch 5 ohms or less between the connectors, 10,000 ohms or greater between circuit 314 (TN/LB) and ground.
2 1505 (YE/RD) DOWN power feed to RH window motor. UP return from RH window motor. 5 ohms or less between the connectors (both disconnected), 10,000 ohms or greater between circuit 1505 (YE/RD) and ground.
3 170 (RD/LB) power feed to RH window control switch 10 volts or greater with accessory delay relay 1 active. 5 ohms or less between the connectors.
5 1506 (RD/WH) UP power feed to RH window motor. DOWN return from the RH window motor. 5 ohms or less between the connectors (both disconnected), 10,000 ohms or greater between circuit 1506 (RD/WH) and ground.
6 313(WH/YE) UP power feed from the LH window control switch. 5 ohms or less between the connectors (both disconnected), 10,000 ohms or greater between circuit 313 (WH/YE) and ground.
