Quarter Window Switch C2981

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

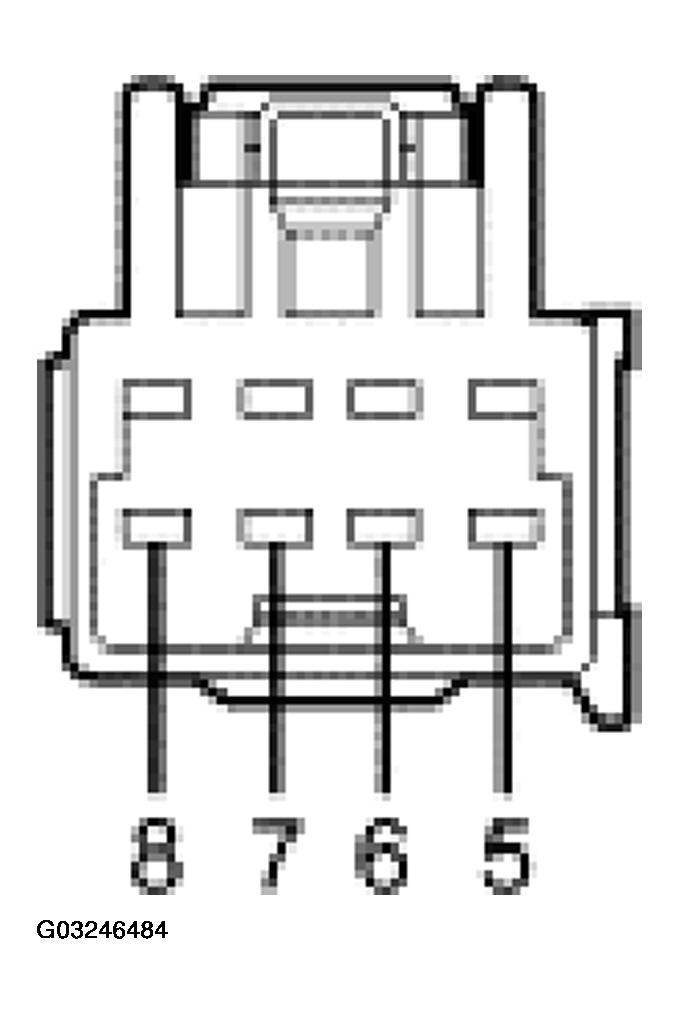

QUARTER WINDOW SWITCH C2981

G03246484
Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
5 194 (PK) power feed from the SJB fuse 5 (20A) 10 volts or greater with the accessory delay relay 1 active. 5 ohms or less between the connectors (both disconnected).
6 882 (BN/YE) OPEN power feed to both of the quarter window motors. CLOSE return from both of the quarter window motors. 10 volts or greater with the accessory delay relay 1 active and the quarter window switch in the OPEN position. 5 ohms or less between connectors (both disconnected).
7 881 (BN) CLOSE power feed to both of the quarter window motors. OPEN return from both of the quarter window motors. 10 volts or greater with the accessory delay relay 1 active and the quarter window switch in the CLOSE position. 5 ohms or less between connectors (both disconnected).
8 1205 (BK) quarter window switch ground. 5 ohms or less between quarter window switch and ground.
