LH Window Control Switch C508a

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

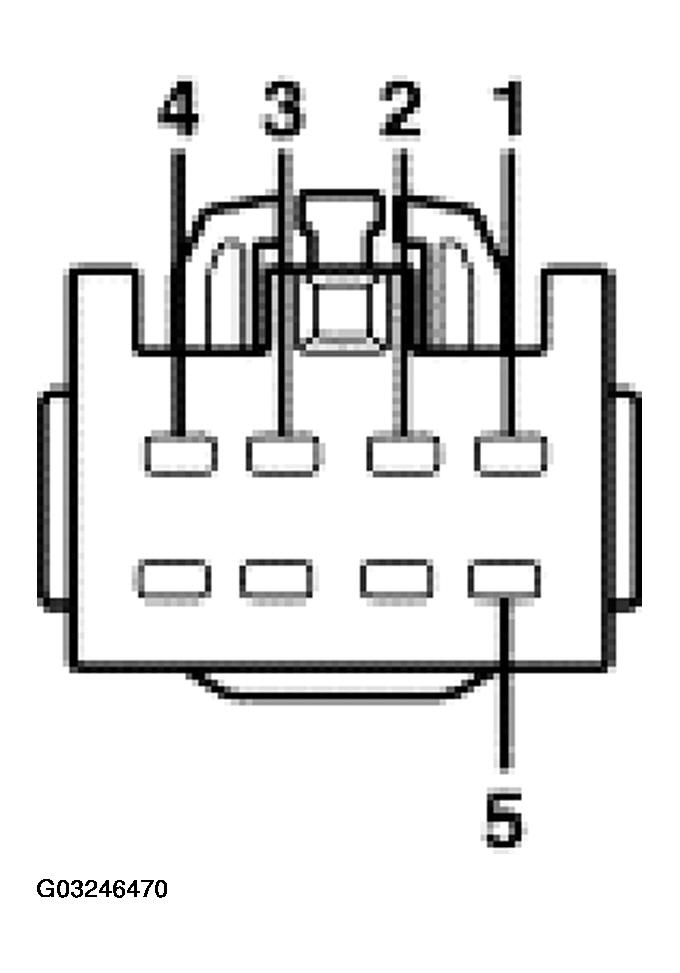

LH WINDOW CONTROL SWITCH C508A

G03246470
Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
1 1205 (BK) LH window control switch ground 5 ohms or less between LH window control switch and ground.
2 314 (TN/LB) LH window control switch DOWN output to the RH window motor 5 ohms or less between connectors, 10,000 ohms or greater between circuit 314 (TN/LB) and ground.
3 313 (WH/YE) LH window control switch UP output to the RH window motor 5 ohms or less between the connectors, 10,000 ohms or greater between circuit 313 (WH/YE) and ground.
4 400 (LB/BK) LH window control switch power (for LH window motor) 10 volts or greater with accessory delay relay 2 active. 5 ohms or less between connectors (both connectors disconnected).
5 1205 (BK) LH window control switch ground 5 ohms or less between LH window control switch and ground.
