Bussed Electrical Center (BEC) C1035d

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

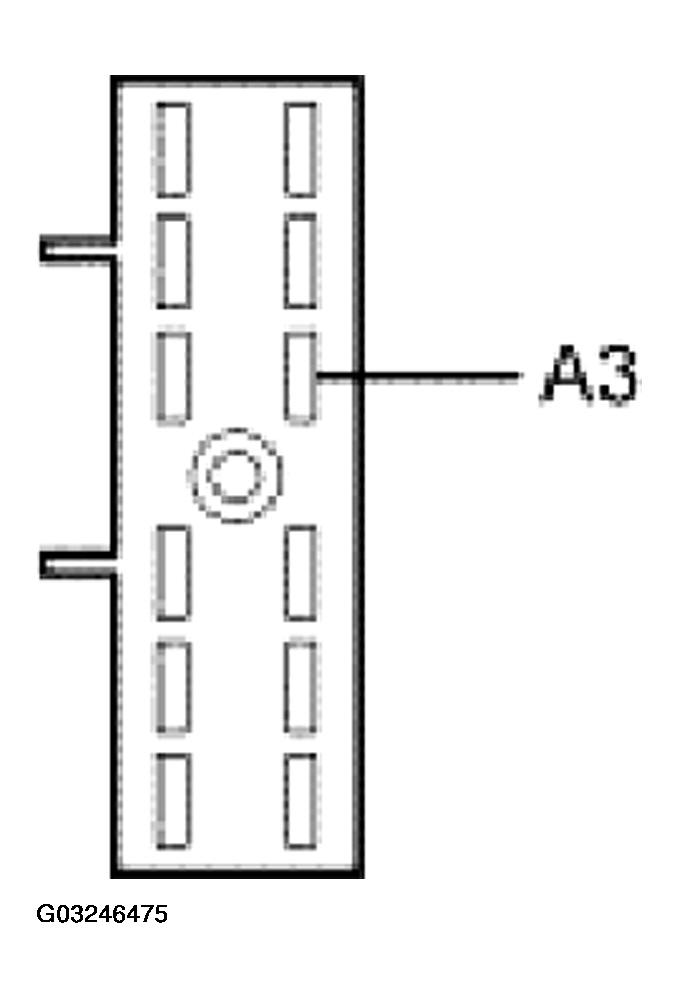

BUSSED ELECTRICAL CENTER (BEC) C1035D

G03246475
Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
A3 296 (WH/VT) power feed from BEC fuse 10 (30A) to accessory delay relay 1. 10 volts or greater at all times, 5 ohms or less between connectors (both disconnected).
