Photocell C286

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

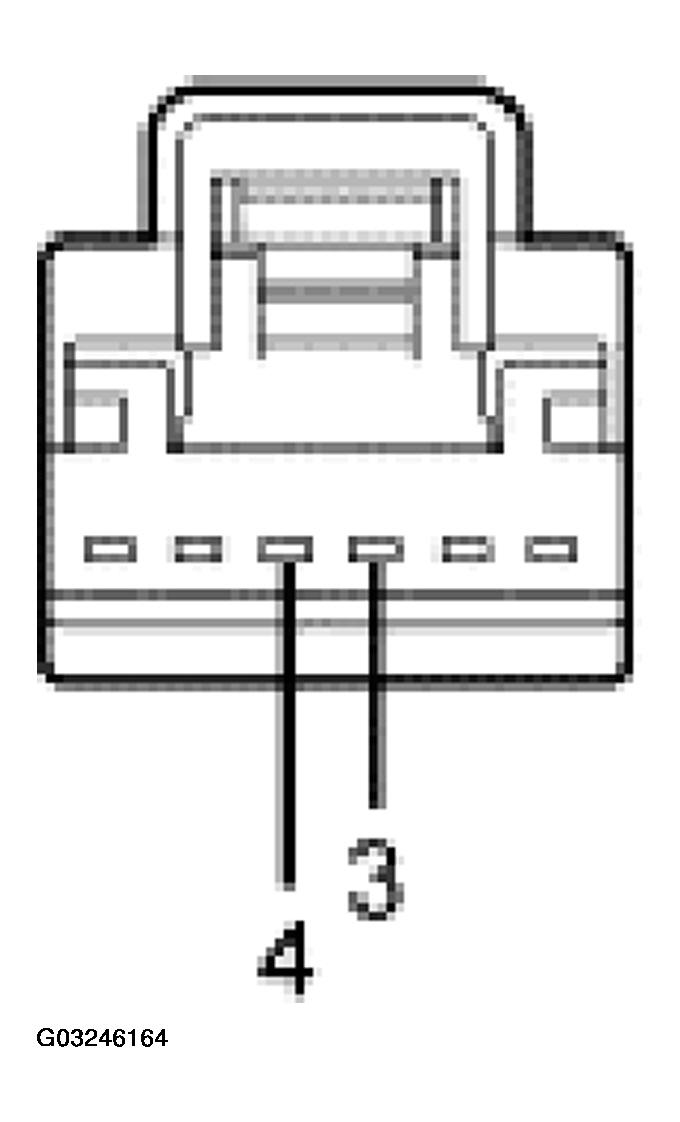

PHOTOCELL C286

G03246164
Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
3 1768 (OG/RD) power for anti-theft LED. 12 volts, 5 ohms or less between the photocell and the smart junction box (SJB). Greater than 10,000 ohms to ground with the SJB and the photocell disconnected.
4 343 (DB/LG) switched ground circuit for the anti-theft LED. 0 volts, 5 ohms or less between the photocell and the PCM. Greater than 10,000 ohms to ground with the PCM and the photocell disconnected.
