Smart Junction Box (SJB) C2280h
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

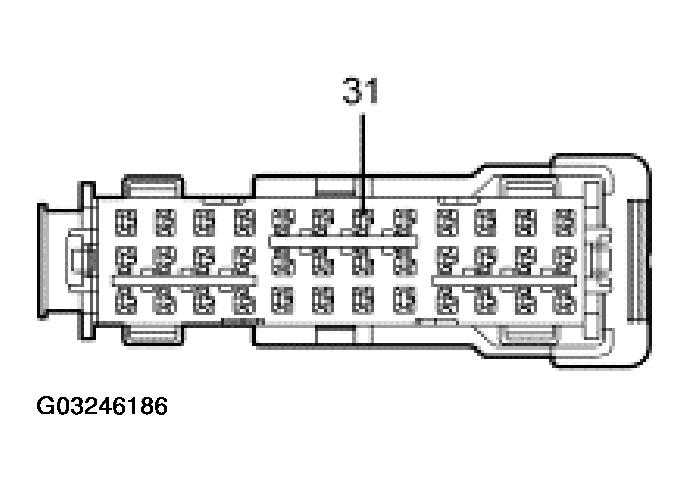

SMART JUNCTION BOX (SJB) C2280H
|
|
| Pin Number (s) |
Circuit Designation/Description |
Normal Condition/Measurement |
| 31 |
1524 (DB) power to the SJB. |
12 volts to the SJB, greater than 10,000 ohms to ground with the SJB disconnected. |
