Smart Junction Box (SJB) C2280e
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

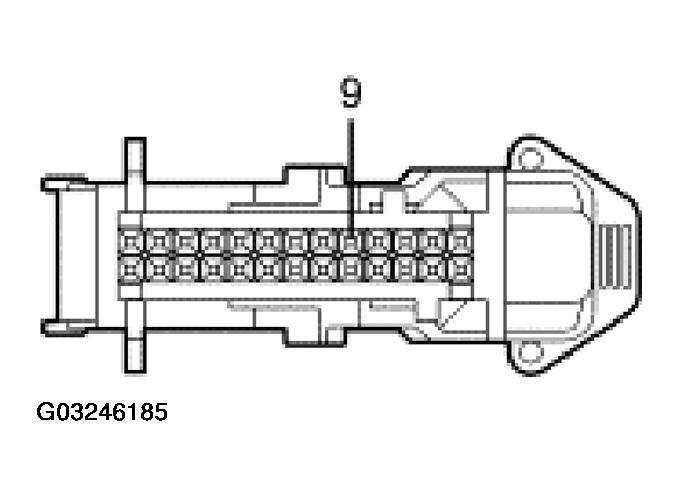

SMART JUNCTION BOX (SJB) C2280E
|
|
| Pin Number (s) |
Circuit Designation/Description |
Normal Condition/Measurement |
| 9 |
1313 (LB/BK) driver door disarm switch signal circuit. |
0 volts, greater than 10,000 ohms to ground with the SJB and the driver door disarm switch disconnected. |
