Smart Junction Box (SJB) C2280d
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

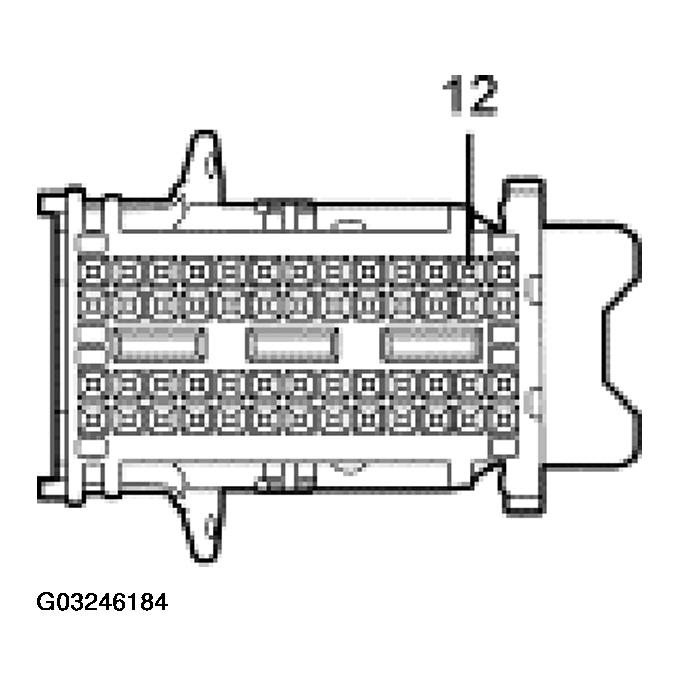

SMART JUNCTION BOX (SJB) C2280D
|
|
| Pin Number (s) |
Circuit Designation/Description |
Normal Condition/Measurement |
| 12 |
1324 (BK/LG) anti-theft alarm horn power. |
0 ohms between the SJB and the anti-theft horn. Greater than 10,000 ohms to ground with the SJB and the anti-theft alarm horn disconnected. |
