Smart Junction Box (SJB) C2280c
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

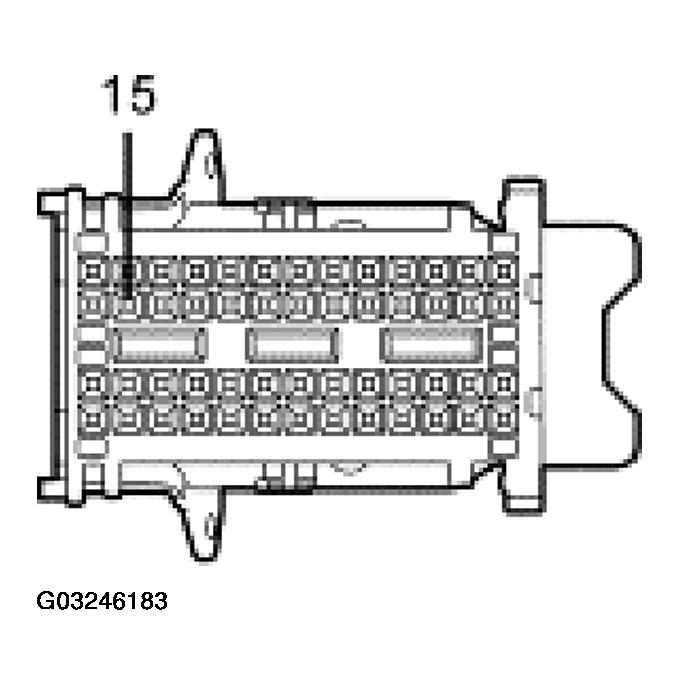

SMART JUNCTION BOX (SJB) C2280C
|
|
| Pin Number(s) |
Circuit Designation/Description |
Normal Condition/Measurement |
| 15 |
1304 (VT/OG) signal for the hood ajar switch. |
0 volts, greater than 10,000 ohms to ground with the SJB and the hood ajar switch disconnected. |
