Hood Ajar Switch C127
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

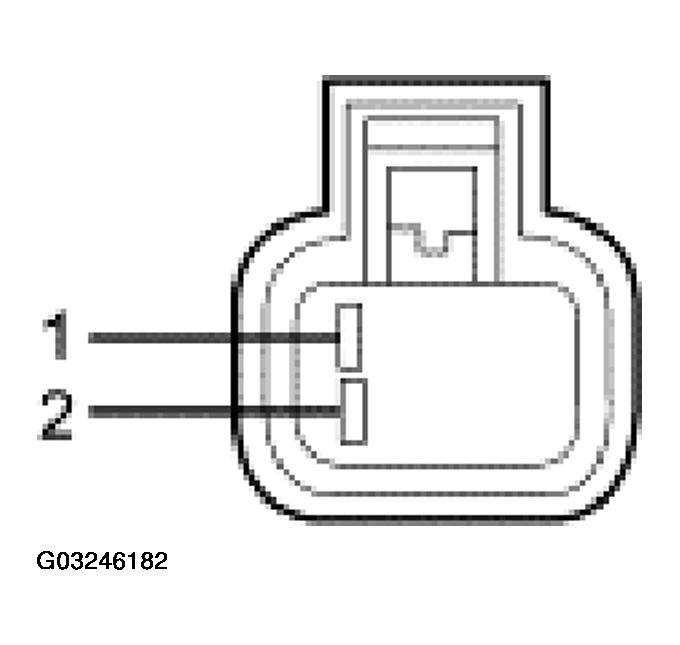

HOOD AJAR SWITCH C127
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 1304 (VT/OG) smart junction box (SJB) to hood ajar switch circuit. | Less than 5 ohms between the SJB and hood ajar switch. Greater than 10,000 ohms to ground with the SJB and the hood ajar switch disconnected. |
| 2 | 1205 (BK) ground circuit for hood ajar switch. | 0 volts, less than 5 ohms to ground with the hood ajar switch disconnected. |
