Driver Door Disarm Switch C509
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

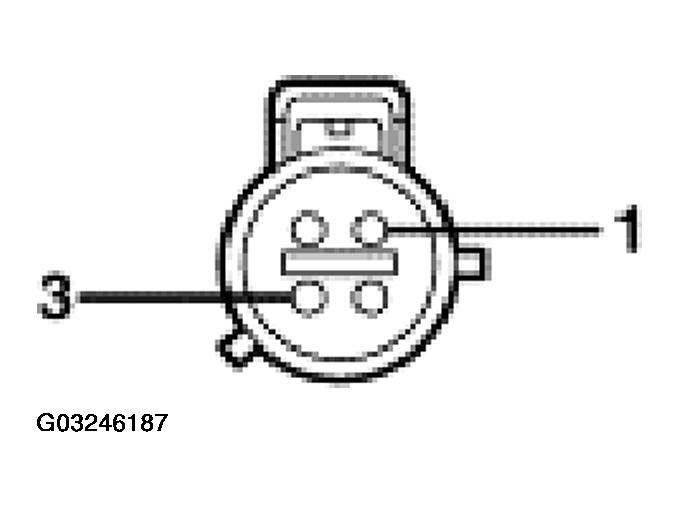

DRIVER DOOR DISARM SWITCH C509
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 1205 (BK) ground circuit for the driver door disarm switch. | 0 volts. Less than 5 ohms to ground. |
| 3 | 1313 (LB/BK) transmits signal to the SJB. | 0 volts, 5 ohms or less between the SJB and the hood ajar switch. Greater than 10,000 ohms to ground with the driver door disarm switch and the smart junction box disconnected. |
