Anti-Theft Alarm Horn C3069
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

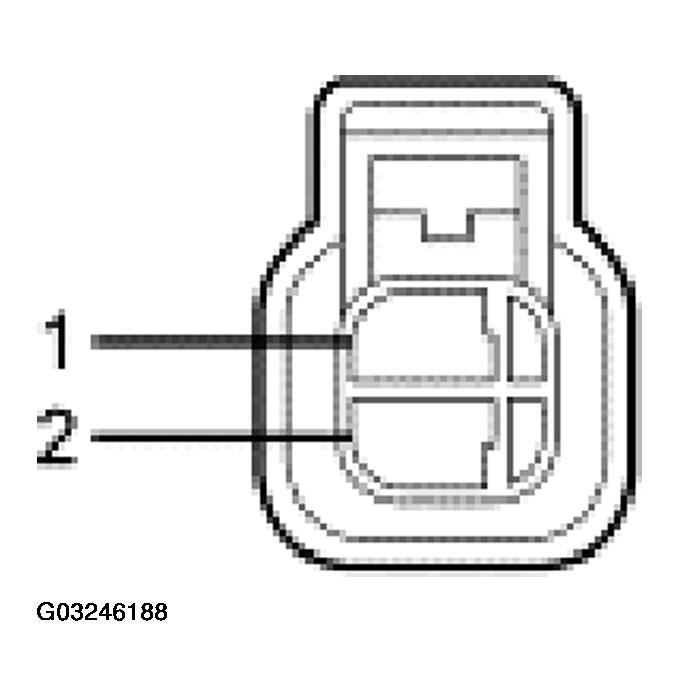

ANTI-THEFT ALARM HORN C3069
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 1205 (BK) ground circuit for the anti-theft horn. | 0 volts. Less than 5 ohms to ground. |
| 2 | 1324 (BK/LG) power circuit to the anti-theft horn. | 0 volts, 5 ohms or less between the SJB and the anti-theft alarm horn. Greater than 10,000 ohms to ground with the anti-theft alarm horn and the SJB disconnected. |
