SJB C2280c

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

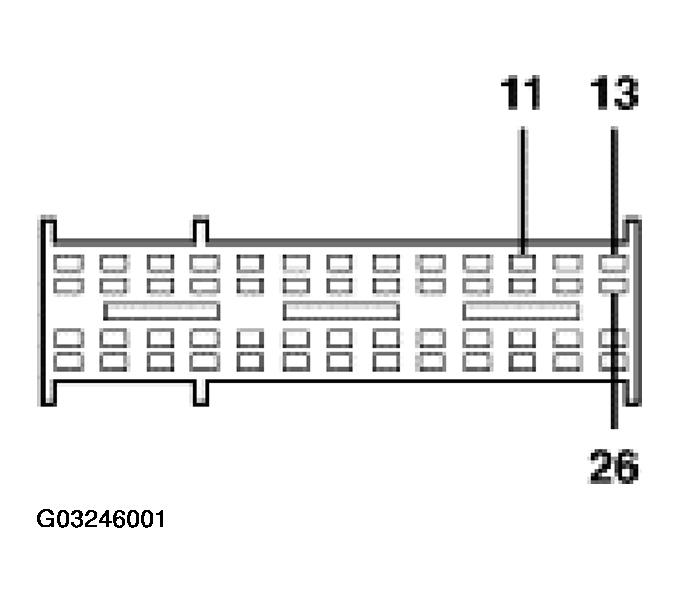

Fig 1: Identifying SJB C2280c
G03246001Courtesy of FORD MOTOR CO.
SJB C2280C CIRCUIT REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
11 378 (BN/YE) trailer tow RH turn/stop relay control circuit Greater than 10 volts, less than 5 ohms between the SJB and the BEC.
13 576 (DG) trailer tow parking lamp relay control circuit Greater than 10 volts, less than 5 ohms between the SJB and the BEC.
26 374 (DB/WH) trailer tow LH turn/stop relay output circuit Greater than 10 volts, less than 5 ohms between the SJB and the BEC.
