BEC C1035a

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

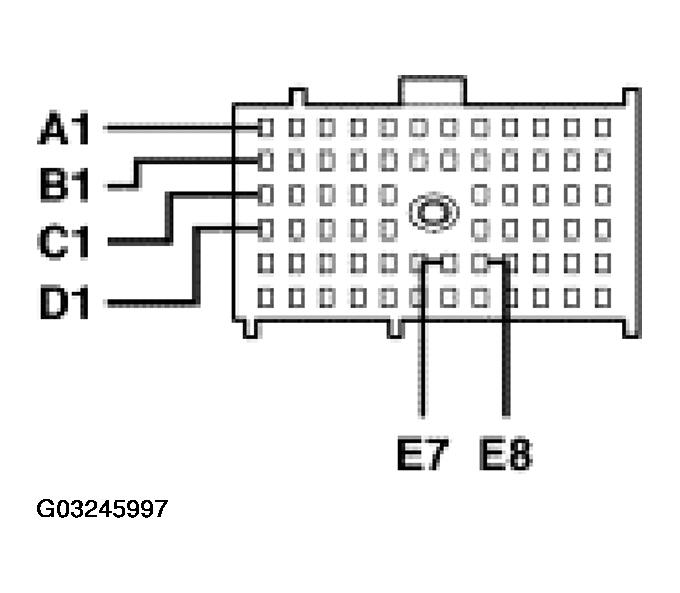

Fig 1: Identifying BEC C1035a
G03245997Courtesy of FORD MOTOR CO.
BEC C1035A CIRCUIT REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
A1 378 (BN/YE) trailer tow RH turn/stop relay control circuit 0 volts, less than 5 ohms between the BEC and the SJB.
B1 64 (DG) trailer tow RH turn/stop relay output circuit 0 volts, less than 5 ohms between the BEC and the trailer tow connector.
C1 374 (DB/WH) trailer tow LH turn/stop relay control circuit 0 volts, less than 5 ohms between the BEC and the SJB.
D1 52 (YE) trailer tow LH turn/stop relay output circuit 0 volts, less than 5 ohms between the BEC and the trailer tow connector.
E7 576 (DG) trailer tow parking lamp relay control circuit 0 volts, less than 5 ohms between the BEC and the SJB.
E8 962 (BN/WH) trailer tow parking lamp relay output circuit 0 volts, less than 5 ohms between the BEC and the trailer tow connector.
