SJB C2280h

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

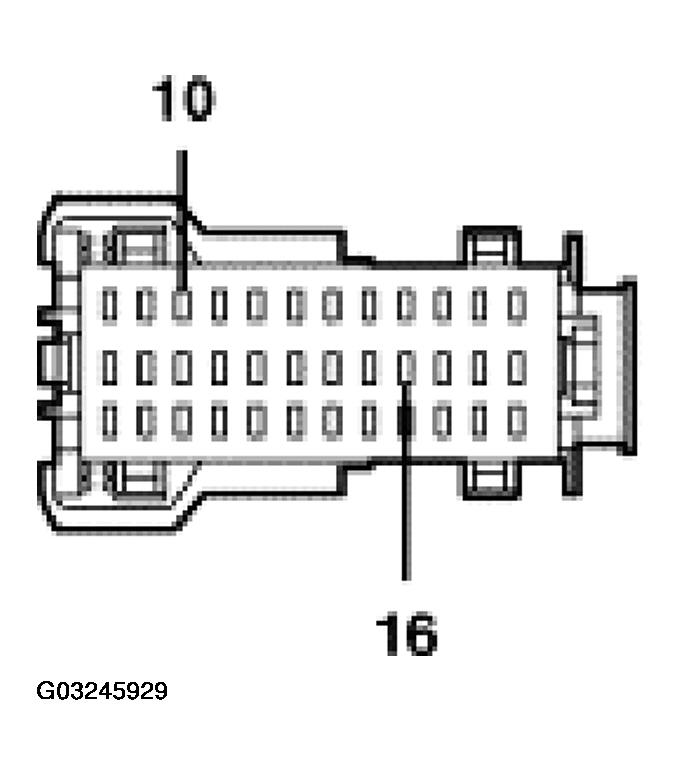

Fig 1: Identifying SJB C2280h
G03245929Courtesy of FORD MOTOR CO.
SJB C2280H CIRCUIT REFERENCE

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
10 10 (LG/RD) stoplamp switch B+ supply circuit 0 voltage, less than 5 ohms between the SJB and the stoplamp switch.
16 810 (RD/LG) stoplamp switch output circuit 0 voltage, less than 5 ohms between the SJB and the stoplamp switch.
