SJB C2280d

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

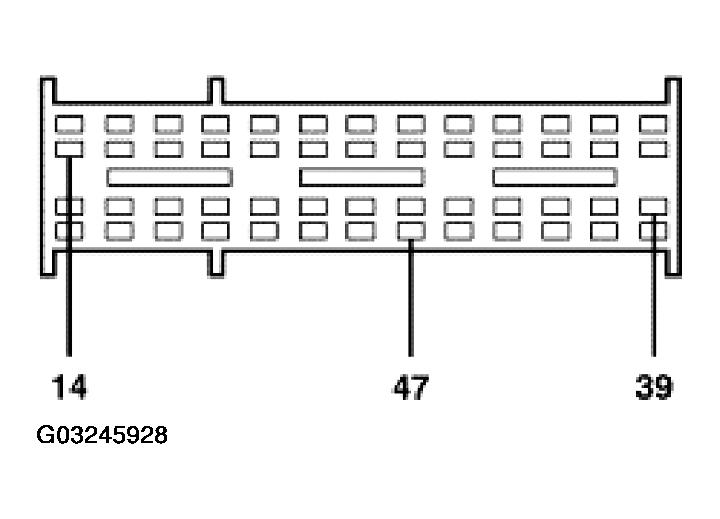

Fig 1: Identifying SJB C2280d
G03245928Courtesy of FORD MOTOR CO.
SJB C2280D CIRCUIT REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
14 1363 (WH/RD) LH rear stoplamp power supply circuit 0 volts, less than 5 ohms between the SJB and the LH rear stoplamp.
39 1456 (RD/LB) high mounted stoplamp power supply circuit 0 voltage, less than 5 ohms between the SJB and the high mounted stoplamp.
47 1365 (GY/LB) RH rear stoplamp power supply circuit 0 voltage, less than 5 ohms between the SJB and the RH rear stoplamp.
