RH Rear Lamp C415, LH Rear Lamp C412
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

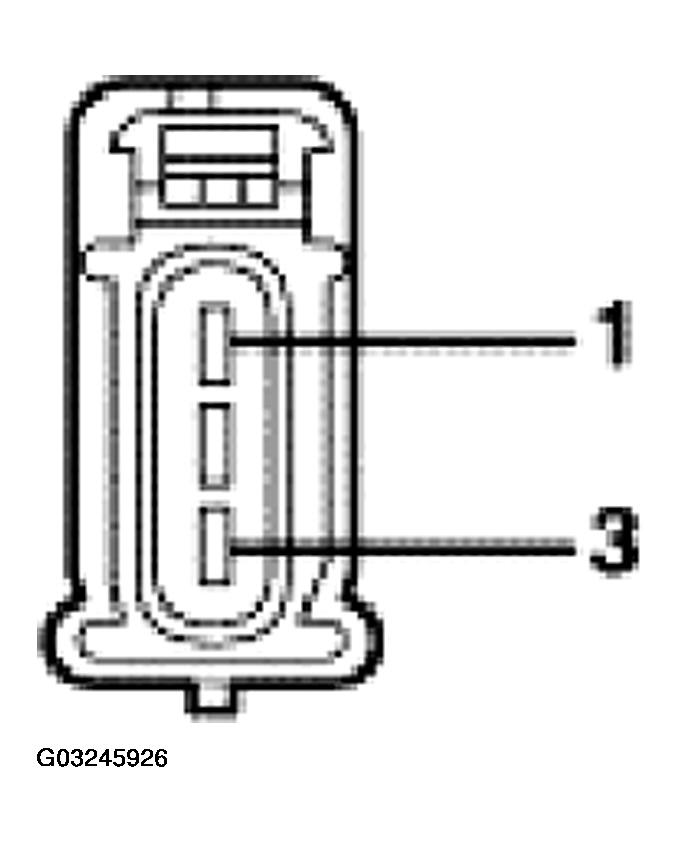

RH REAR LAMP C415, LH REAR LAMP C412 CIRCUIT REFERENCE
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 1205 (BK) ground circuit | 0 volts, less than 5 ohms between the rear lamp and ground. |
| 3 (C415) | 1365 (GY/LB) RH rear stoplamp power supply circuit | 0 voltage, less than 5 ohms between the RH rear lamp and the SJB. Greater than 10 volts with the brake pedal applied. |
| 3 (C412) | 1363 (WH/RD) LH rear stoplamp power supply circuit | 0 voltage, less than 5 ohms between the LH rear lamp and the SJB. Greater than 10 volts with the brake pedal applied. |
