High Mounted Stoplamp C475

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

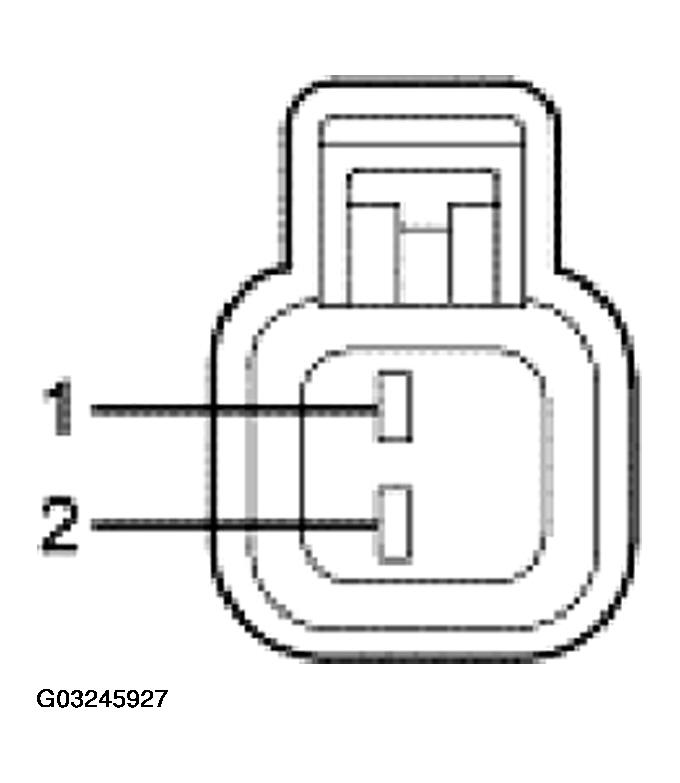

Fig 1: Identifying High Mounted Stoplamp C475
G03245927Courtesy of FORD MOTOR CO.
HIGH MOUNTED STOPLAMP C475 CIRCUIT REFERENCE

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
1 1456 (RD/LB) high mounted stoplamp power supply circuit 0 voltage, less than 5 ohms between the high mounted stoplamp and the SJB. Greater than 10 volts with the brake pedal applied.
2 1205 (BK) ground circuit 0 volts, less than 5 ohms between the high mounted stoplamp and ground.
