SJB C2280d
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

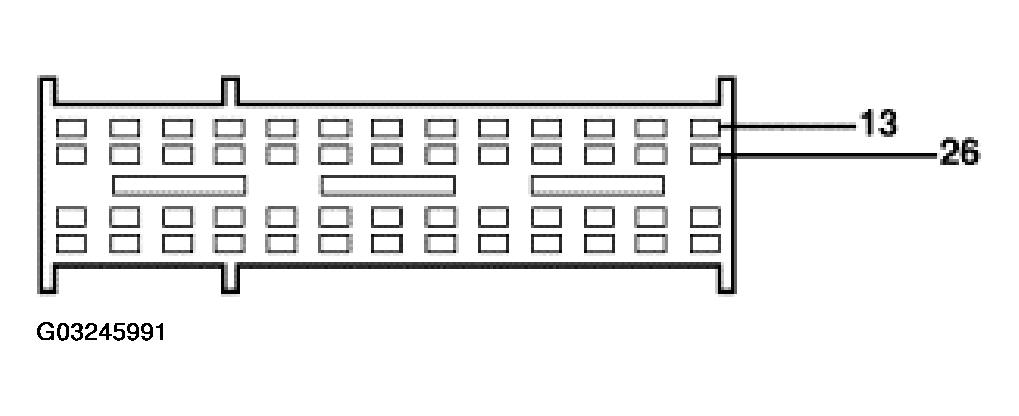

SJB C2280D CIRCUIT REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 13 | 1367 (WH/YE) RH reversing lamp power supply circuit | 0 voltage, less than 5 ohms between the SJB and the reversing lamp. |
| 26 | 1362 (DG/OG) LH reversing lamp control | 0 voltage, less than 5 ohms between the SJB and the reversing lamp. |
