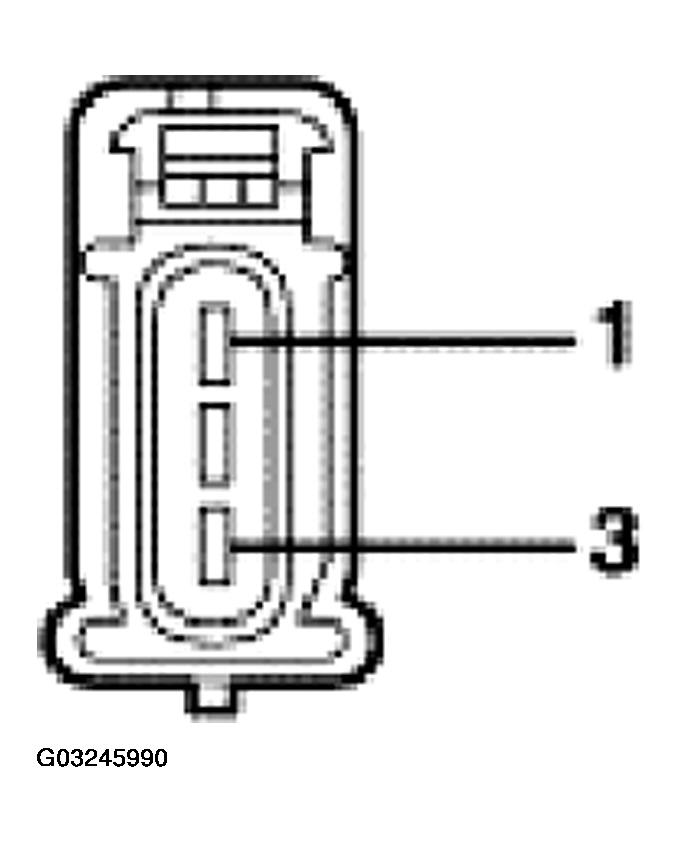

LEFT REVERSING LAMP C451, RIGHT REVERSING LAMP C461 CIRCUIT REFERENCE
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 1205 (BK) reversing lamp ground circuit | 0 voltage, less than 5 ohms between the reversing lamp and ground. |
| 3 (C451) | 1362 (DG/OG) LH reversing lamp control | Greater than 10 volts with the ignition ON and the transmission in REVERSE. Greater than 10,000 ohms between the reversing lamp and ground |
| 3 (C461) | 1367 (WH/YE) RH reversing lamp control | Greater than 10 volts with the ignition ON and the transmission in REVERSE. Greater than 10,000 ohms between the reversing lamp and ground |
