License Lamp C421

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

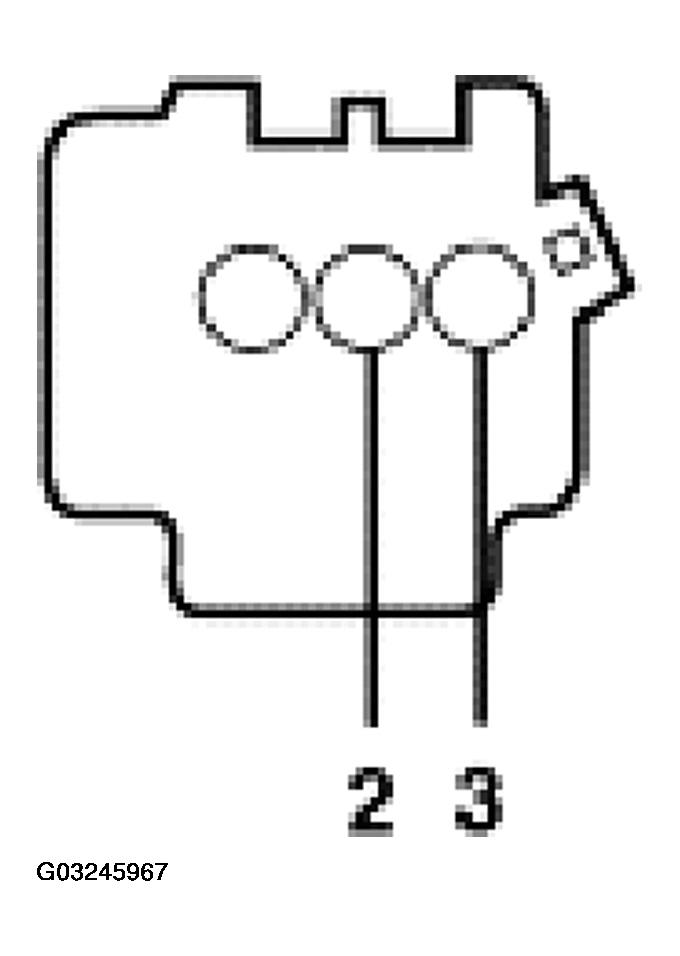

Fig 1: Identifying License Lamp C421
G03245967Courtesy of FORD MOTOR CO.
LH SIDE MARKER C151, RH SIDE MARKER C161 CIRCUIT REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
2 1370 (DG/LG) power supply circuit 0 volts, less than 5 ohms between the rear and the SJB. Greater than 10 volts with the parking lamps ON.
3 1205 (BK) ground circuit 0 volts, less than 5 ohms between the rear lamp and ground.
