LH Front Parking/Turn Lamp C1115, RH Front Parking/Turn Lamp C1043

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

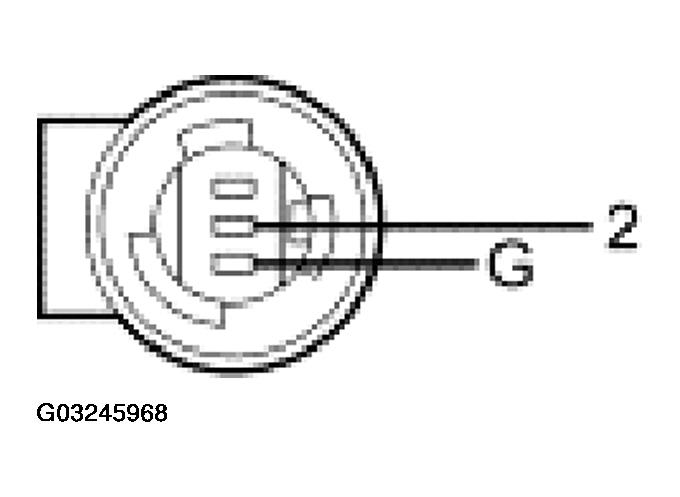

Fig 1: Identifying LH Front Parking/Turn Lamp C1115, RH Front Parking/Turn Lamp C1043
G03245968Courtesy of FORD MOTOR CO.
LH SIDE MARKER C151, RH SIDE MARKER C161 CIRCUIT REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
2 1340 (DG) power supply circuit 0 volts, less than 5 ohms between the parking/turn lamp and the SJB. Greater than 10 volts with the parking lamps ON.
G 1205 (BK) ground circuit 0 volts, less than 5 ohms between the parking/turn lamp and ground.
