BEC C1035c

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

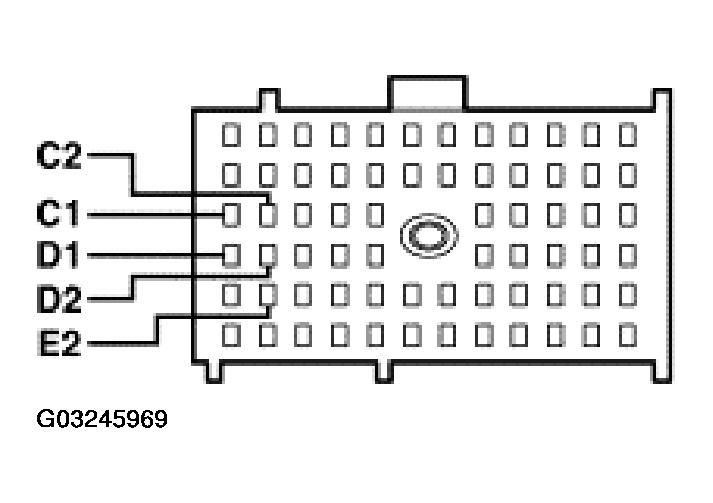

Fig 1: Identifying BEC C1035c
G03245969Courtesy of FORD MOTOR CO.
BEC C1035C CIRCUIT REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
C1 1205 (BK) ground supply circuit Less than 5 ohms between the BEC and the RH auxiliary lamp.
C2 1205 (BK) ground supply circuit Less than 5 ohms between the BEC and the LH side marker lamp.
D1 1205 (BK) ground circuit Less than 5 ohms between the BEC and ground.
D2 1205 (BK) ground supply circuit Less than 5 ohms between the BEC and the RH side marker.
E2 1205 (BK) ground supply circuit Less than 5 ohms between the BEC and the LH auxiliary lamp or the LH front parking/turn lamp.
