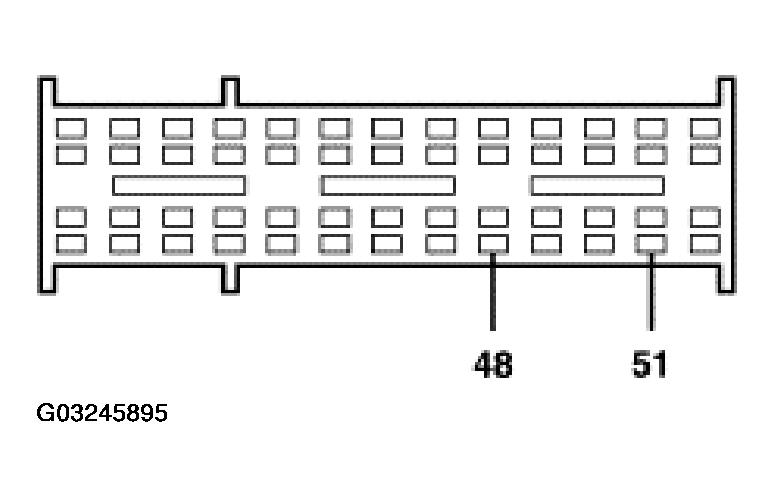

SJB C2280D CIRCUIT REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 48 | 1336 (LG/WH) RH headlamp low beam power supply circuit | 0 voltage, less than 5 ohms between the SJB and the RH headlamp. |
| 51 | 1338 (WH) LH headlamp low beam power supply circuit | 0 voltage, less than 5 ohms between the smart junction box and the LH headlamp. |
