SJB C2280b

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

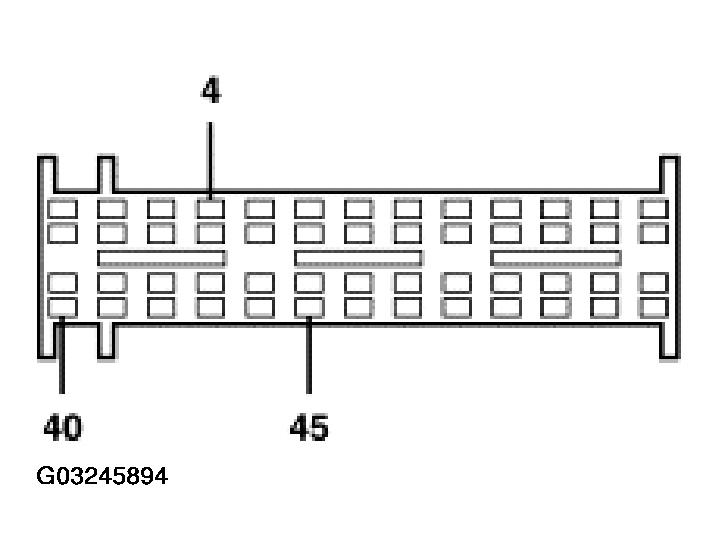

Fig 1: Identifying SJB C2280b
G03245894Courtesy of FORD MOTOR CO.
SJB C2280B CIRCUIT REFERENCE

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
4 2068 (BK/LB) multifunction switch return signal circuit 0 voltage, less than 5 ohms between smart junction SJB and the multifunction switch. Greater than 10,000 ohms between the SJB and ground.
40 1394 (WH/RD) SJB headlamp mode request signal 0 voltage, less than 5 ohms between the SJB and the multifunction switch. Greater than 10,000 ohms between the SJB and ground.
45 1395 (RD/PK) SJB high beam request circuit 0 voltage, less than 5 ohms between the SJB and the multifunction switch. Greater than 10,000 ohms between the SJB and ground.
