Multifunction Switch C202a
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

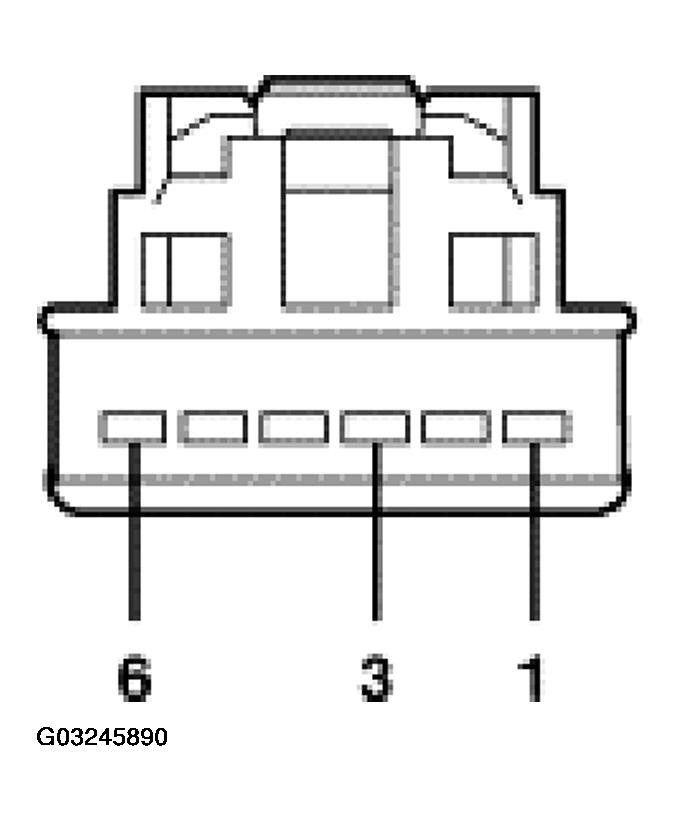

MULTIFUNCTION SWITCH C202A CIRCUIT REFERENCE
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 1395 (RD/PK) smart junction box high beam request circuit | Approximately 5 volts, less than 5 ohms between the multifunction switch and the smart junction box. Greater than 10,000 ohms between the multifunction switch and ground. |
| 3 | 2068 (BK/LB) multifunction switch return signal circuit | 0 voltage, less than 5 ohms between multifunction switch and the smart junction box. |
| 6 | 1394 (WH/RD) smart junction box headlamp mode request signal | Approximately 5 volts, less than 5 ohms between the multifunction switch and the smart junction box. Greater than 10,000 ohms between the multifunction switch and ground. |
