SJB C2280c

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

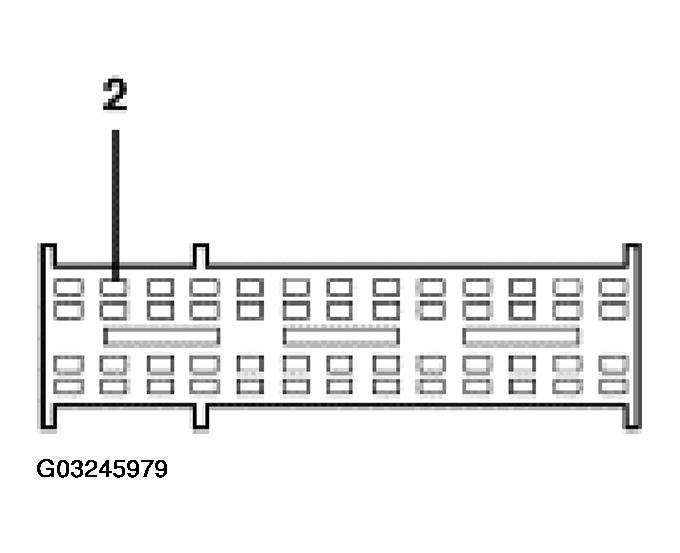

Fig 1: Identifying SJB C2280c
G03245979Courtesy of FORD MOTOR CO.
SJB C2280C CIRCUIT REFERENCE

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
2 1347 (DB/WH) fog lamp relay control circuit 0 voltage, less than 5 ohms between the SJB and the BEC.
