LH Fog Lamp C152, RH Fog Lamp C162

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

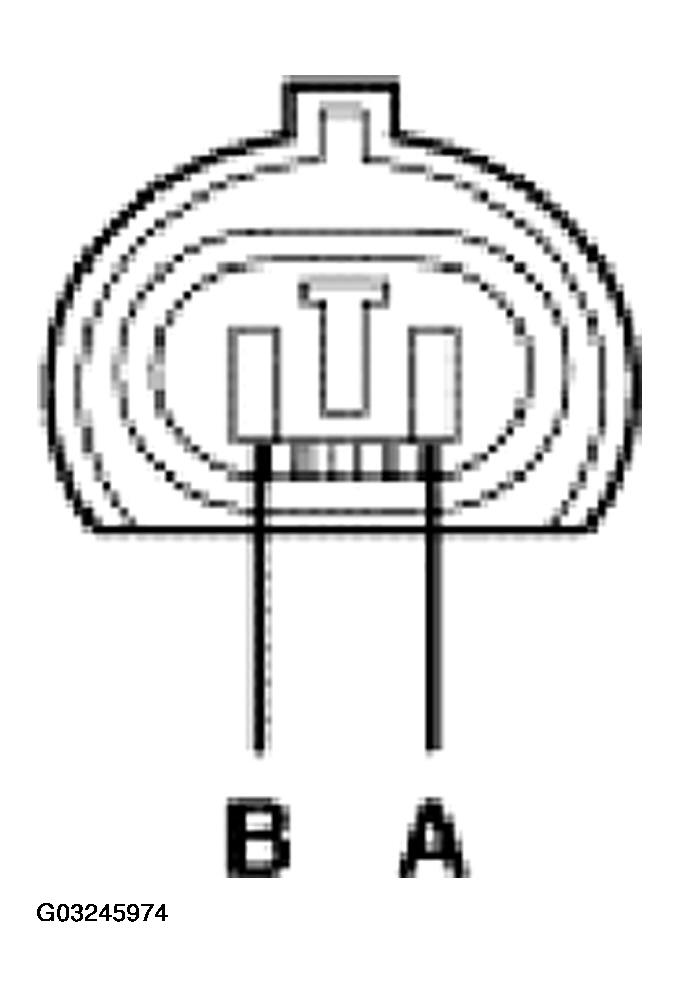

Fig 1: Identifying LH Fog Lamp C152, RH Fog Lamp C162
G03245974Courtesy of FORD MOTOR CO.
LH FOG LAMP C152, RH FOG LAMP C162 CIRCUIT REFERENCE

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
A 1205 (BK) fog lamp ground circuit 0 voltage, less than 5 ohms between the fog lamp and ground.
B (C152) 1721 (LB/BK) LH fog lamp power supply circuit Greater than 10 volts with the fog lamp switch in ON position. Less than 5 ohms between the fog lamp and the BEC.
B (C162) 1776 (TN/OG) RH fog lamp power supply circuit Greater than 10 volts with the fog lamp switch in ON position. Less than 5 ohms between the fog lamp and the BEC.
