Headlamp Switch C205

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

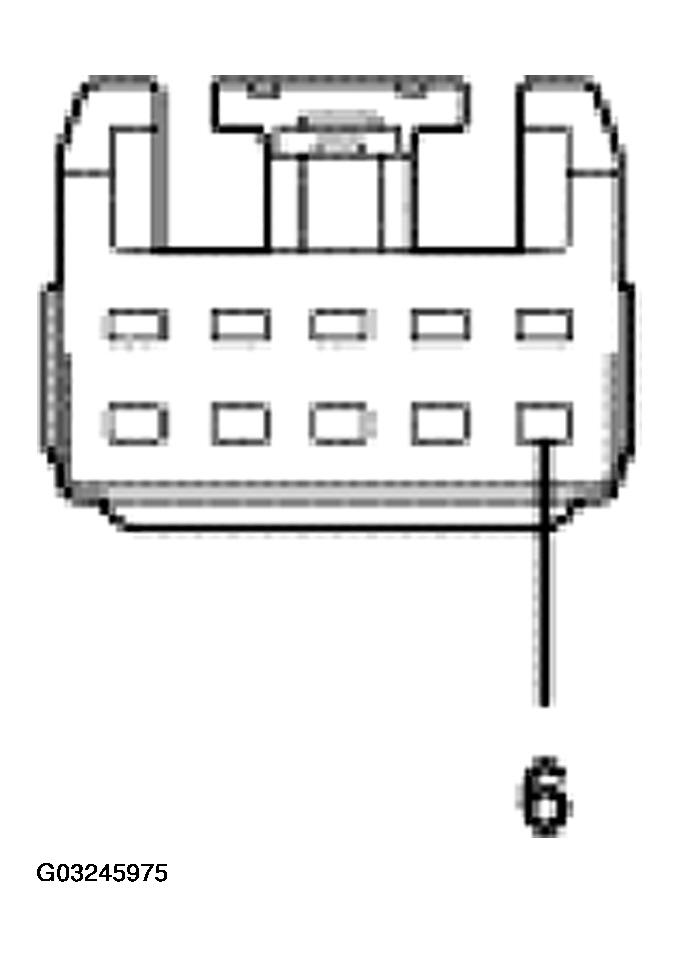

Fig 1: Identifying Headlamp Switch C205
G03245975Courtesy of FORD MOTOR CO.
HEADLAMP SWITCH C205 CIRCUIT REFERENCE

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
6 1669 (OG/LG) fog lamp switch input circuit Less than 5 ohms between the headlamp switch and the SJB. Greater than 10,000 ohms between the headlamp switch and ground.
