BEC C1035C

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

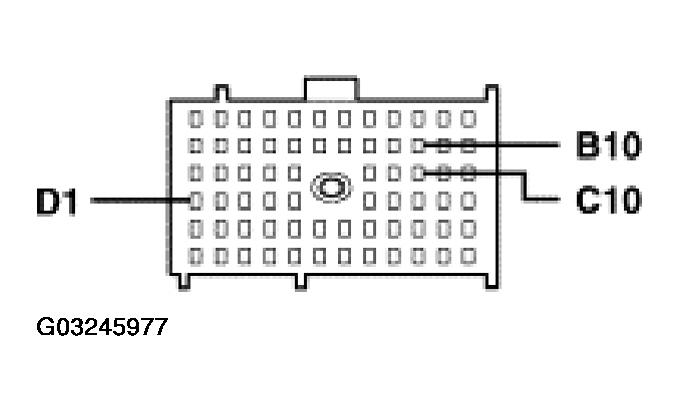

Fig 1: Identifying BEC C1035c
G03245977Courtesy of FORD MOTOR CO.
BEC C1035C CIRCUIT REFERENCE

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
B10 1776 (TN/OG) RH fog lamp power supply circuit 0 voltage, less than 5 ohms between the BEC and the RH fog lamp.
C10 1721 (LB/BK) LH fog lamp power supply circuit 0 voltage, less than 5 ohms between the BEC and the LH fog lamp.
D1 1205 (BK) ground circuit 0 voltage, less than 5 ohms between the BE the ground.
