Headlamp Switch C205

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

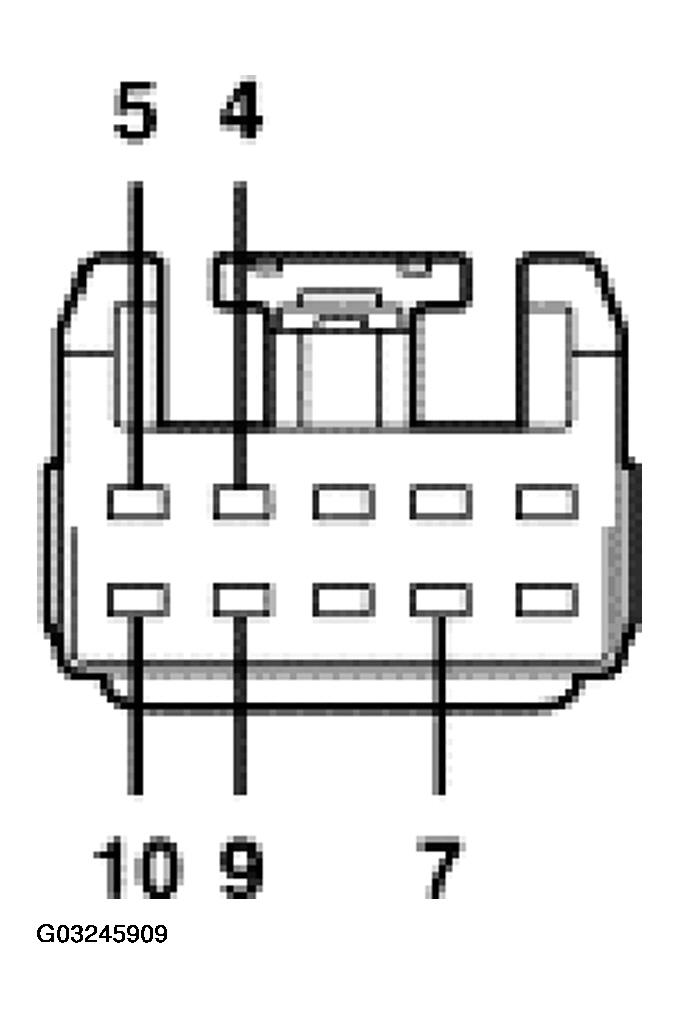

Fig 1: Identifying Headlamp Switch C205
G03245909Courtesy of FORD MOTOR CO.
HEADLAMP SWITCH C205 CIRCUIT REFERENCE

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
4 1399 (DB/WH) autolamps ON input circuit Less than 5 ohms between the headlamp switch and the SJB. Greater than 10,000 ohms between the headlamp switch and ground.
5 1401 (BK/LG) parking lamps ON input circuit Less than 5 ohms between the headlamp switch and the SJB. Greater than 10,000 ohms between the headlamp switch and ground.
7 1205 (BK) headlamp switch ground circuit 0 volts, less than 5 ohms between the headlamp switch and the ground.
9 1400 (TN/WH) headlamp switch OFF input circuit Less than 5 ohms between the headlamp switch and the SJB. Greater than 10,000 ohms between the headlamp switch and ground.
10 1402 (RD/WH) headlamps ON input circuit Less than 5 ohms between the headlamp switch and the SJB. Greater than 10,000 ohms between the headlamp switch and ground.
