Speaker C395, C396, C523, C612 (with RICP)
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

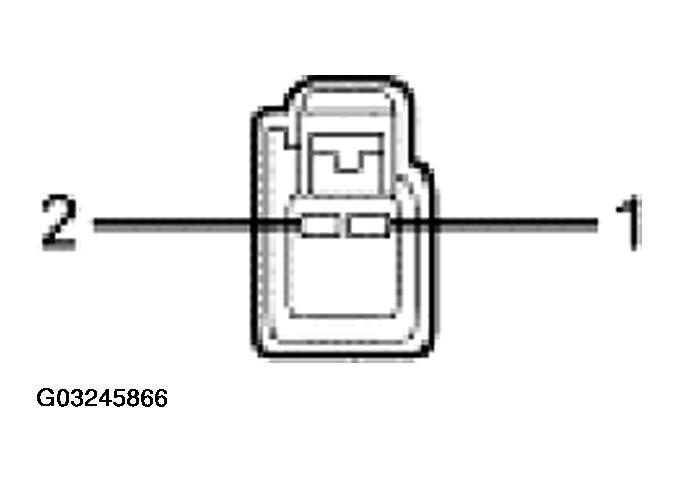

SPEAKER C395, C396, C523, C612 (WITH RICP)
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 (C395) | 1726 (GY/LB) LR speaker audio output | Less than 5 ohms between the LR speaker and the RICP (if equipped) or the audio unit. Greater than 10,000 ohms between the LR speaker and ground. |
| 1 (C396) | 1781 (OG/RD) RR speaker audio output | Less than 5 ohms between the RR speaker and the RICP (if equipped) or the audio unit. Greater than 10,000 ohms between the RR speaker and ground. |
| 1 (C523) | 804 (OG/LG) LF speaker audio output | Less than 5 ohms between the LF speaker and the audio unit. Greater than 10,000 ohms between the LF speaker and ground. |
| 1 (C612) | 805 (WH/LG) RF speaker audio output | Less than 5 ohms between the RF speaker and the audio unit. Greater than 10,000 ohms between the RF speaker and ground. |
| 2 (C395) | 1725 (TN/YE) LR speaker audio return | Less than 5 ohms between the LR speaker and the RICP (if equipped) or the audio unit. Greater than 10,000 ohms between the LR speaker and ground. |
| 2 (C396) | 1780(BN/PK) RR speaker audio return | Less than 5 ohms between the RR speaker and the RICP (if equipped) or the audio unit. Greater than 10,000 ohms between the RR speaker and ground. |
| 2 (C523) | 813 (LB/WH)LF speaker audio return | Less than 5 ohms between the LF speaker and the audio unit. Greater than 10,000 ohms between the LF speaker and ground. |
| 2(C612) | 811 (DG/OG) RF speaker audio return | Less than 5 ohms between the RF speaker and the audio unit. Greater than 10,000 ohms between the RF speaker and ground. |
