Parking Aid Speaker - Front

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the RH instrument panel steering column reinforcement. For additional information, refer to INSTRUMENT PANEL .
  2. Remove the parts in the order indicated in the following illustration and table.

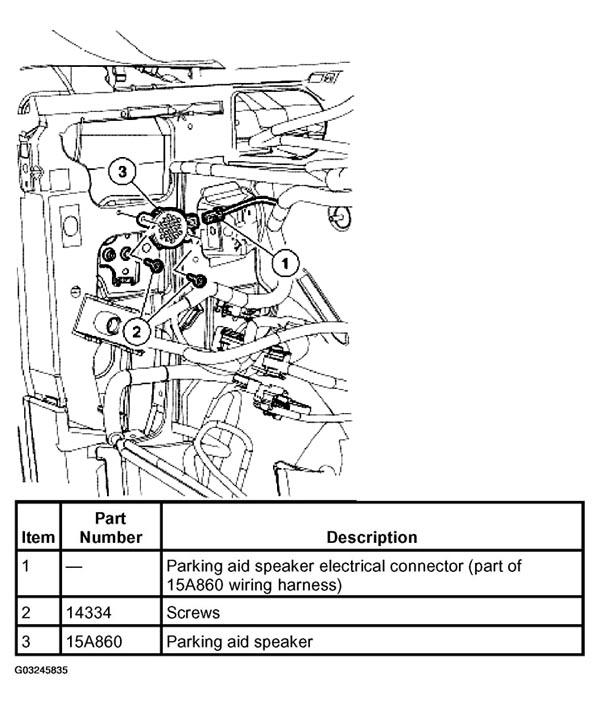

    Fig 1: Parking Aid Speaker - Front Components Removal Sequence
    G03245835Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
