Instrument Cluster And Panel Illumination: Notes

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Cover the end of the tool with tape to prevent damage to the trim panel.

NOTE: Use a thin-bladed tool to remove the headlamp switch assembly.

Disconnect the battery. For additional information, refer to BATTERY & CHARGING SYSTEM .
Remove the parts in the order indicated in the following illustration and table.

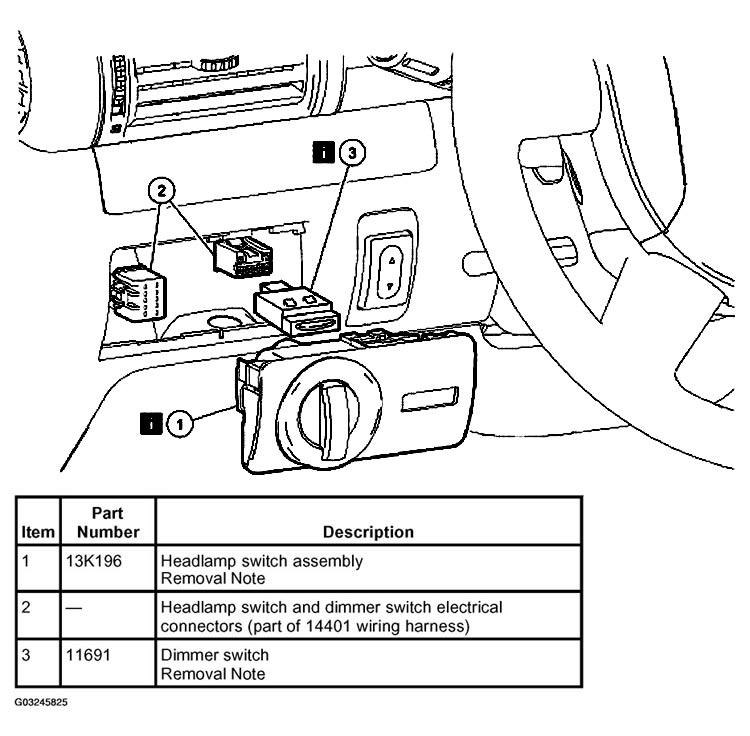

Fig 1: Instrument Cluster And Panel Illumination Components Removal Sequence
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
