Removal And Installation: Horn

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. For additional information, refer to IDENTIFICATION CODES .

NOTE: Tire removed for clarity.

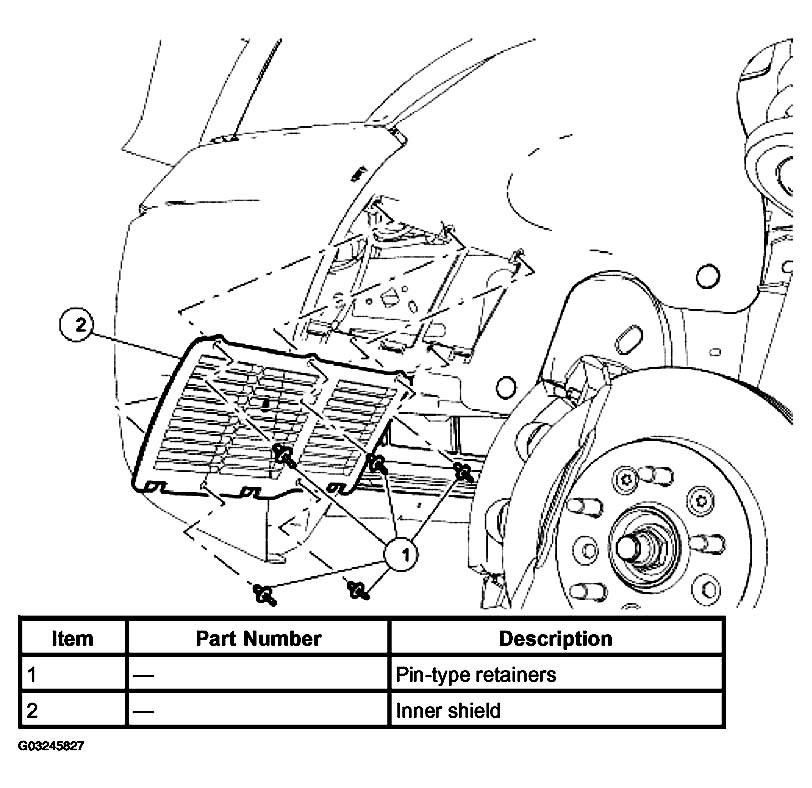

Fig 1: Horn Components Removal Sequence (Items 1-2)

Courtesy of FORD MOTOR CO.

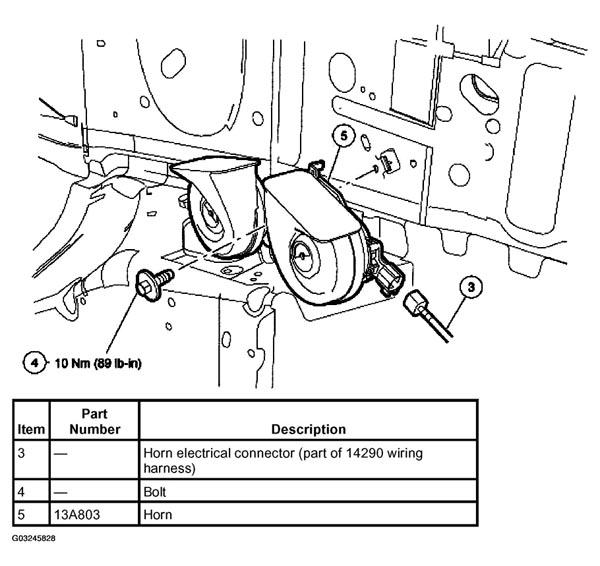

Fig 2: Horn Components Removal Sequence (Items 3-5)

Courtesy of FORD MOTOR CO.

Remove the parts in the order indicated in the following illustration and table.
To install, reverse the removal procedure.
