Instrument Cluster C220a
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

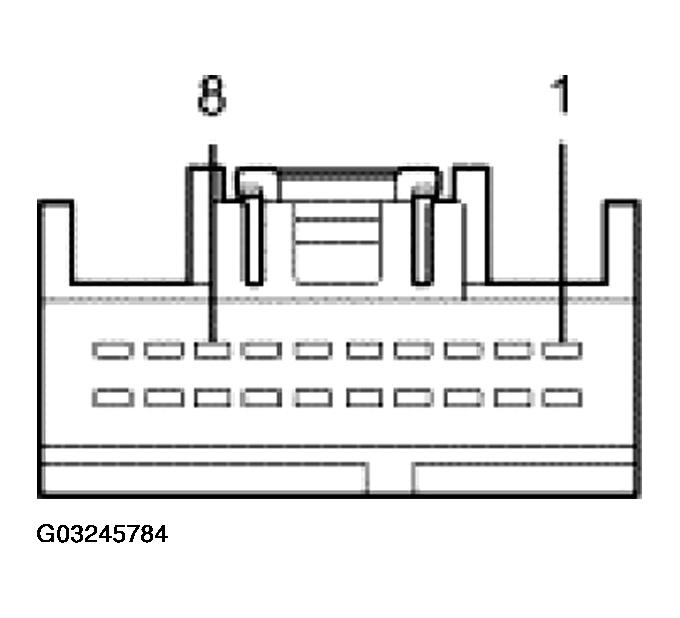

INSTRUMENT CLUSTER C220A CONNECTOR CIRCUIT REFERENCE
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 608 (BK/YE) | Less than 5 ohms between the instrument cluster and the RCM. Greater than 10,000 ohms between the instrument cluster and ground. |
| 8 | 1414 (LG/VT) | Less than 5 ohms between the steering column assembly and the instrument cluster. Greater than 10,000 ohms between the steering column assembly and ground. |
