Traction Assist/Parking Aid Disable Switch C2114
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

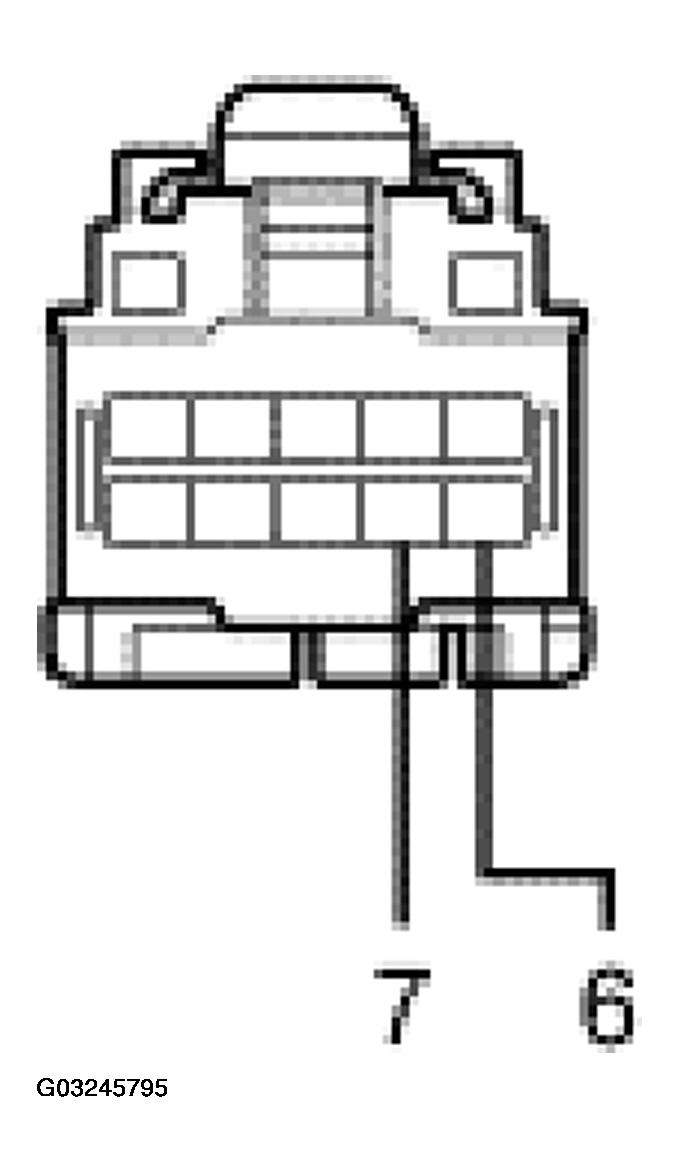

TRACTION ASSIST/PARKING AID DISABLE SWITCH C2114 CONNECTOR CIRCUIT REFERENCE
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 6 | 1436 (VT/OG) Parking aid on/off signal LED | Less than 5 ohms resistance between the traction assist/parking aid disable switch and the parking aid module. Greater than 10,000 ohms resistance between the traction assist/parking aid disable switch and ground. |
| 7 | 1435 (DG/VT) Parking aid on/off signal | Less than 5 ohms resistance between the traction assist/parking aid disable switch and the parking aid module. Greater than 10,000 ohms resistance between the traction assist/parking aid disable switch and ground. |
