SJB C2280d
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

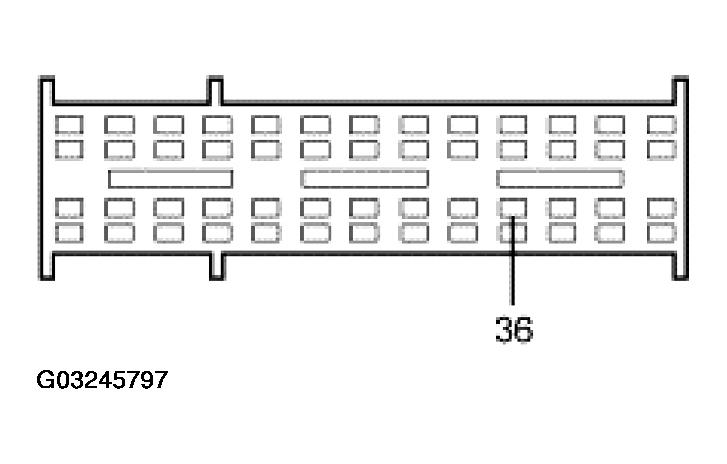

Courtesy of FORD MOTOR CO. SJB C2280d CONNECTOR CIRCUIT REFERENCE
| Pin Number(s) |
Circuit Designation/Description |
Normal Condition/Measurement |
| 36 |
1040 (RD/BK) parking aid module power |
12 volts with the key in RUN. |
