Parking Aid Module C4014 (With Front Parking Aid)

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

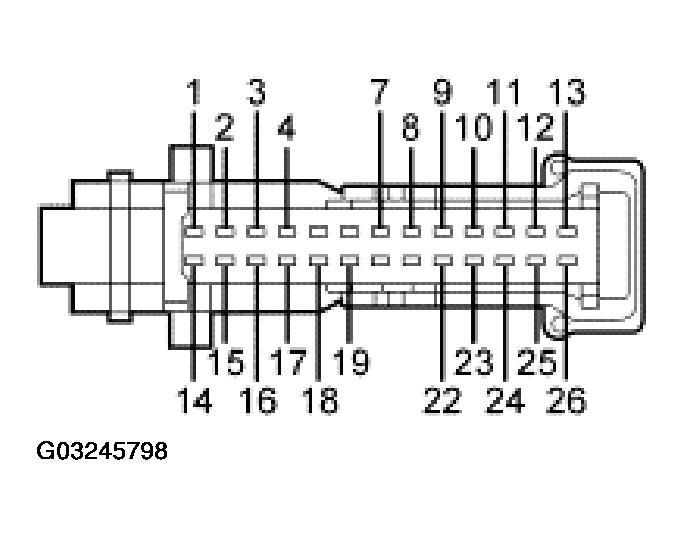

Fig 1: Identifying Parking Aid Module C4014 (With Front Parking Aid) Pins

Courtesy of FORD MOTOR CO.

PARKING AID MODULE C4014 (WITH FRONT PARKING AID) CONNECTOR CIRCUIT REFERENCE

Pin Number (s)	Circuit Designation/Description	Normal Condition/Measurement
1	1040 (RD/BK) parking aid module power	12 volts with the key in RUN.
2	2082 (YE/RD) front parking aid module sensor power	Less than 5 ohms resistance between the parking aid module and the parking aid sensors. Greater than 10,000 ohms resistance between the parking aid module.
3	1205 (BK) ground	Less than 5 ohms resistance between the parking aid module and ground.
4	2083 (BK/PK) front parking aid sensor return	Less than 5 ohms resistance between the parking aid module and the parking aid sensors. Greater than 10,000 ohms resistance between the parking aid module and ground.
7	1435 (DG/VT) disable switch signal	Less than 5 ohms resistance between the parking aid module and the switch
8	1434 (LB/PK) parking signal	12 volts in RUN with the transmission in PARK.
9	1367 (WH/YE) reverse signal	12 volts in RUN with the transmission in REVERSE.
10	1442 (DG/WH) left inner parking aid sensor input	Less than 5 ohms resistance between the parking aid module and the parking aid sensor. Greater than 10,000 ohms resistance between the parking aid module and ground.
11	1441 (WH/LG) left outer parking aid sensor input	Less than 5 ohms resistance between the parking aid module and the parking aid sensor. Greater than 10,000 ohms resistance between the parking aid module and ground.
12	2081 (LB/YE) left front inner parking aid sensor input	Less than 5 ohms resistance between the parking aid module and the parking aid sensor. Greater than 10,000 ohms resistance between the parking aid module and ground.
13	2080 (GY/BK) left front outer parking aid sensor input	Less than 5 ohms resistance between the parking aid module and the parking aid sensor. Greater than 10,000 ohms resistance between the parking aid module and ground.
14	1437 (BK/PK) parking aid speaker +	Less than 5 ohms resistance between the parking aid module and the parking aid speaker. Greater than 10,000 ohms resistance between the parking aid module and ground.
15	1439 (BN/PK) rear parking aid sensor power	Less than 5 ohms between the parking aid module and the parking aid sensor. Greater than 10,000 ohms resistance between the parking aid module and ground.
16	1440 (DG/YE) rear parking aid sensor return	Less than 5 ohms resistance between the parking aid module and the parking aid sensor. Greater than 10,000 ohms resistance between the parking aid module and ground.
17	1438 (DG) rear parking aid speaker -	Less than 5 ohms resistance between the parking aid module and the parking aid speaker. Greater than 10,000 ohms resistance between the parking aid module and ground.
18	2084 (WH/VT) front parking aid speaker -	Less than 5 ohms resistance between the parking aid module and the parking aid speaker. Greater than 10,000 ohms resistance between the parking aid module and ground
19	1436 (VT/OG) parking aid light emitting diode (LED) on/off signal	Less than 5 ohms resistance between the parking aid module and the parking aid disable switch. Greater than 10,000 ohms resistance between the parking aid module and ground.
22	239 (WH/OG) vehicle speed signal	Less than 5 ohms between the ABS module and the parking aid module.
23	1443 (WH/LB) right inner parking aid sensor input	Less than 5 ohms resistance between the parking aid module and the parking aid sensor. Greater than 10,000 ohms resistance between the parking aid module and ground.
24	1444 (DB/YE) right outer parking aid sensor input	Less than 5 ohms resistance between the parking aid module and the parking aid sensor. Greater than 10,000 ohms resistance between the parking aid module and ground.
25	2079 (LG/BK) right front inner parking aid sensor input	Less than 5 ohms resistance between the parking aid module and the parking aid sensor. Greater than 10,000 ohms resistance between the parking aid module and ground.
26	2078 (PK/WH) right front outer parking aid sensor input	Less than 5 ohms resistance between the parking aid module and the parking aid sensor. Greater than 10,000 ohms resistance between the parking aid module and ground.
