Traction Assist/Parking Aid Disable Switch C2114

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

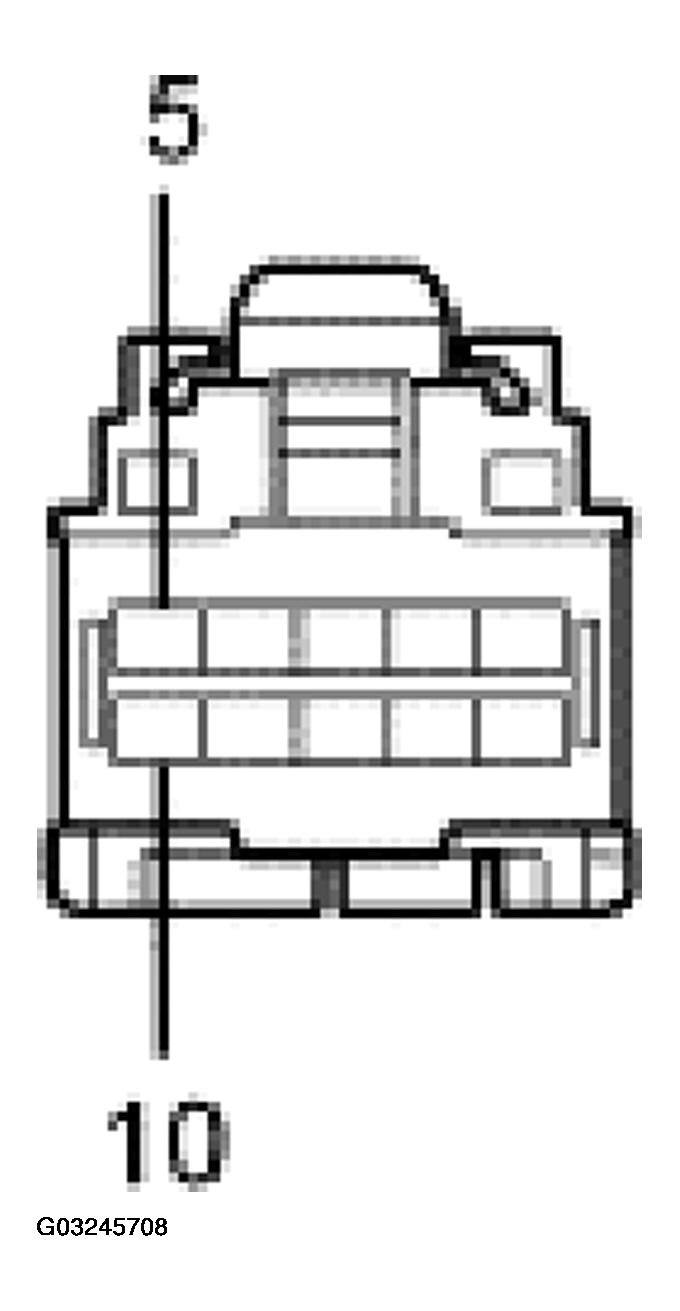

Fig 1: Identifying Traction Assist/Parking Aid Disable Switch C2114 Pins
G03245708Courtesy of FORD MOTOR CO.
TRACTION ASSIST/PARKING AID DISABLE SWITCH C2114 CONNECTOR CIRCUIT REFERENCE

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
5 1205 (BK) traction control indicator control ground circuit 0 volts, less than 5 ohms resistance between the traction assist/parking aid disable switch and chassis ground.
10 1412 (WH/PK) traction control indicator control circuit Less than 5 ohms resistance between the traction assist/parking aid disable switch and the instrument cluster.
