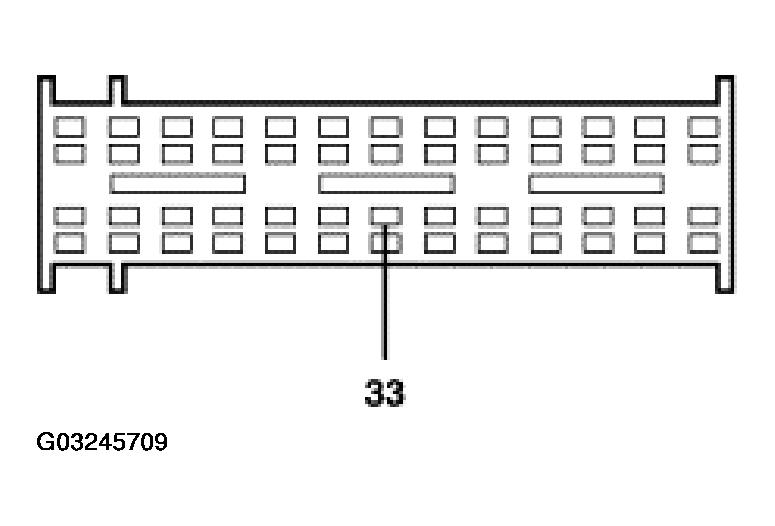

SMART JUNCTION BOX (SJB) C2280B CONNECTOR CIRCUIT REFERENCE
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 33 | 1314 (YE/LG) RF door ajar switch signal | 0 volts, less than 5 ohms resistance between the SJB and the RF door ajar switch. Greater than 10,000 ohms resistance between the SJB and chassis ground with the door closed and less than 5 ohms resistance with the door open. |
