Parking Brake Switch C306
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

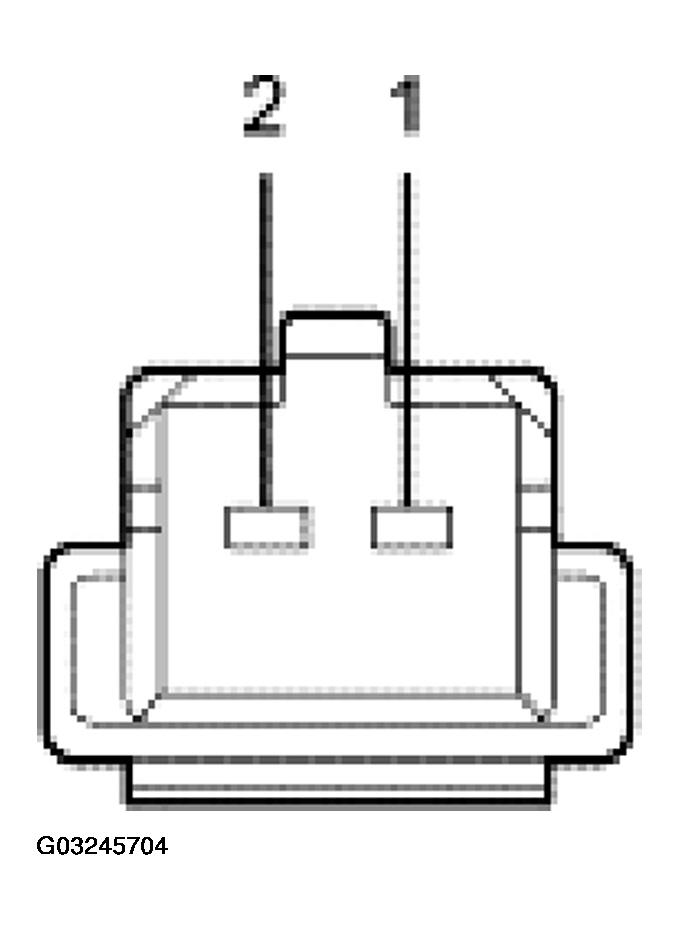

PARKING BRAKE SWITCH C306 CONNECTOR CIRCUIT REFERENCE
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 1309 (RD/YE) brake warning indicator, parking brake input circuit | 0 volts, less than 5 ohms resistance between the instrument cluster and the parking brake switch. Greater than 10,000 ohms resistance between the instrument cluster and chassis ground. |
| 2 | 1205 (BK) brake switch ground | 0 volts, less than 5 ohms resistance between the parking brake switch and chassis ground. |
