Overhead Console C930

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

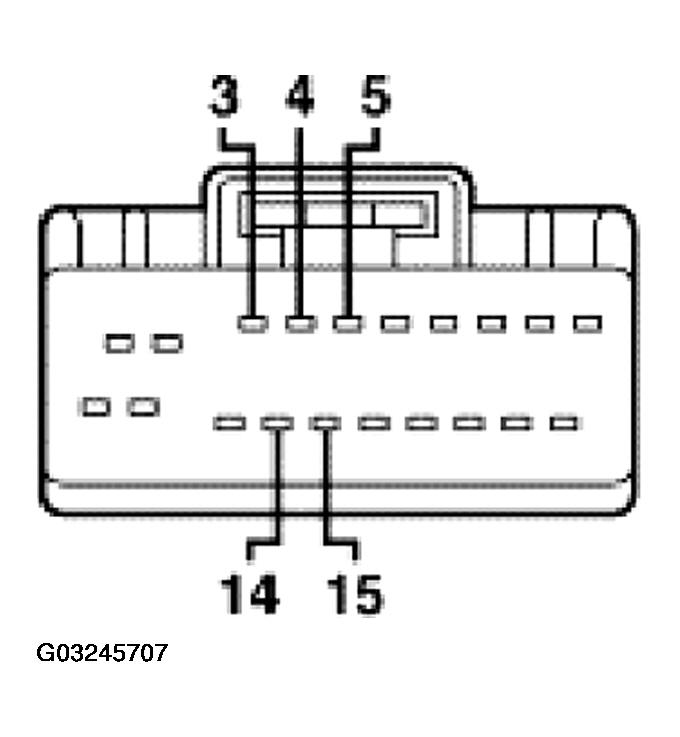

Fig 1: Identifying Overhead Console C930 Pins

Courtesy of FORD MOTOR CO.

OVERHEAD CONSOLE C930 CONNECTOR CIRCUIT REFERENCE

Pin Number (s)	Circuit Designation/Description	Normal Condition/Measurement
3	1040 (RD/BK) compass sensor module power circuit	Greater than 10 volts in RUN. Greater than 10,000 ohms of resistance between the compass sensor module and chassis ground.
4	1203 (BK/LB) compass sensor module ground	0 voltage, less than 5 ohms of resistance between the compass sensor module and chassis ground.
5	702 (WH/BK) compass sensor module data line to message center	0 voltage, less than 5 ohms of resistance between the compass sensor module and the instrument cluster. Greater than 10,000 ohms of resistance between the compass sensor module and chassis ground.
14	1418 (LB/WH) backlighting power supply	0 voltage with headlamp switch in OFF position. Variable voltage between 0 and 10 volts depending on the instrument panel dimmer switch setting with the headlamp switch in PARK/ON positions. Less than 5 ohms resistance between the overhead console and the SJB. Greater than 10,000 ohms resistance between the overhead console and chassis ground.
15	703 (WH/OG) compass sensor module data line to message center	0 voltage, less than 5 ohms of resistance between the compass sensor module and the instrument cluster. Greater than 10,000 ohms of resistance between the compass sensor module and chassis ground.
