Oil Pressure Switch C103

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

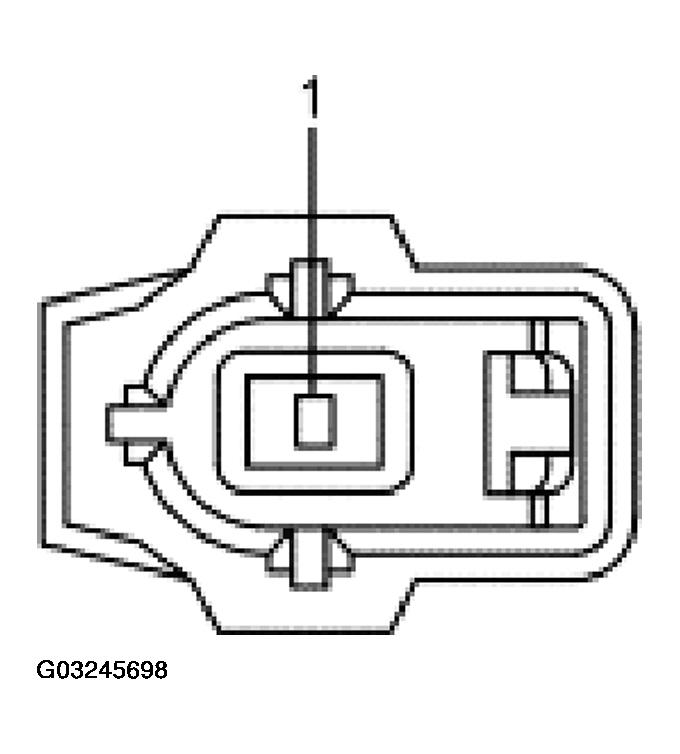

Fig 1: Identifying Oil Pressure Switch C103 Pins
G03245698Courtesy of FORD MOTOR CO.
OIL PRESSURE SWITCH C103 CONNECTOR CIRCUIT REFERENCE

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
1 1308 (BN/OG) oil pressure signal circuit 0 volts, less than 5 ohms resistance between the SJB and the oil pressure switch. Greater than 10,000 ohms resistance between the instrument cluster and chassis ground.
